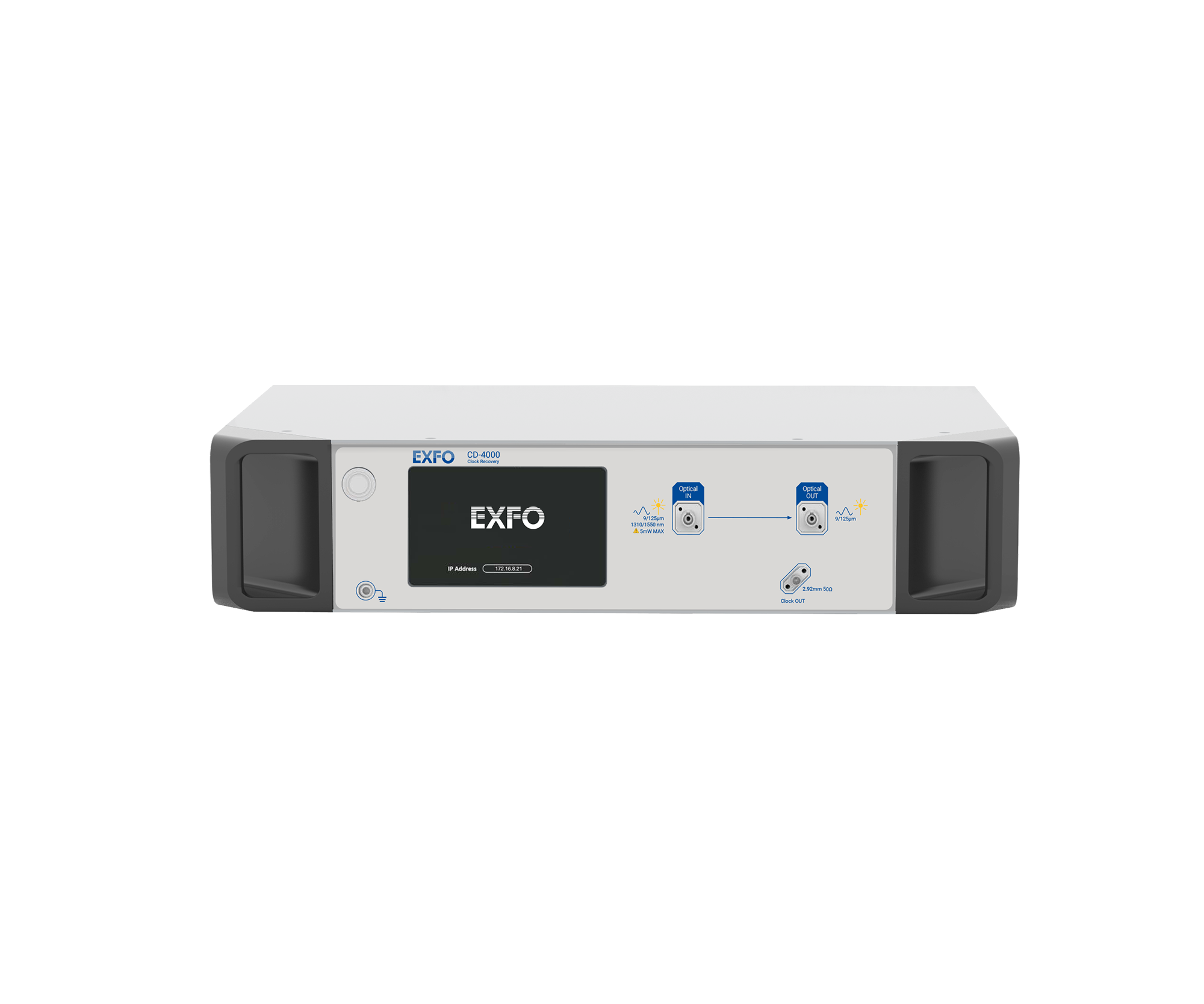

CD-4000 Clock Data Recovery - Optical and electrical CDR for 28 GBd/56 GBd

Efficient CDR solution for the production line.

Spec sheet (PDF)

All products CD-4000 Clock Data Recovery - Optical and electrical CDR for 28 GBd/56 GBd
All products CD-4000 Clock Data Recovery - Optical and electrical CDR for 28 GBd/56 GBd

Key features

  • Supports NRZ and PAM4 signals
  • Integrated O/E with optical splitter
  • Ultra low random jitter
  • Auto-locking

Applications

  • Test and validation of optical transceivers in manufacturing

Description

The purpose of designing various protocols is to transfer a set of information (data) from one place to another. Serial data communication is then used to transmit the data at a high speed. At the receiver end, the transmitted data must be retrieved without losing its integrity with the accompanied timing information. This process is called Clock and Data recovery.

The CD-4000 enables an optimized synchronization between the BA-4000 Bit Analyzer and the EA-4000 sampling oscilloscope.

Along with the EA-4000 Eye Analyzer, BA-4000 Bit-Analyzer and the MA-4000 Module Analyzer, the CD-4000 Clock recovery is part of the unique EXFO’s End-to-End transceiver validation solution.

CD-4000 Clock Data Recovery - Optical and electrical CDR for 28 GBd/56 GBd
