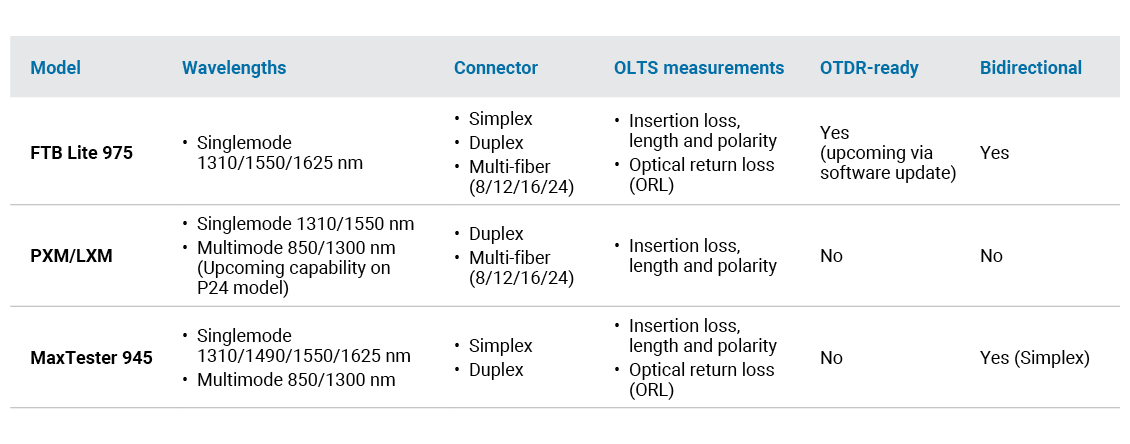

Choose the right tool for your Tier-1 application
Quickly find the test unit that best fits your needs.
FTB Lite 975 - simplex, duplex, multi-fiber bidirectional certifier
When troubleshoot-as-you-build and automation are key—inside and out
Description:
FTB Lite 975 accelerates fiber builds with end-to-end automation (one-touch referencing, touchless testing, automatic results upload, and instant reporting). It equips teams to deploy faster, eliminate manual steps, and deliver networks right the first time.
Key features:
- Test native simplex, duplex, multi-fiber connectors (base 8/12/16/24) with port adaptor.
- SmartRefTM: The easiest referencing ever. One-touch referencing, validation, and troubleshooting with visual diagnostics.
- Bidirectional capability to validate polarity and measure insertion loss, optical return loss, and fiber length.
- End-to-end automation from one-step referencing, touchless testing and reporting to fault finding/OTDR-based troubleshooting.
- Lower ownership costs: No proprietary test cable required—use standard cables and reduce costs.
PXM/LXM – duplex and multi-fiber OLTS
When essential inside-plant fiber certification matters most
Description:
Designed for high-fiber-count inside-plant environments, PXM/LXM delivers essential Tier-1 certification for AI data center rack links—testing duplex and multi-fiber (base-8/12/16/24).
Key features:
- Native duplex and multifiber (up to 24 fibers) tests with dual wavelengths, using a single test cord and automated workflows.
- Switch between duplex and multi-fiber testing with patented Click-Out adapters, also compatible with MPO, MTP and MMC.
- First-time-right polarity that detects duplex and multi-fiber polarity issues hidden in trunk cabling, before the network goes live.
- One-cord referencing—fewer cables, fewer failure points, standards-compliant results.
MaxTester 945 – simplex and duplex OLTS
When simplex or duplex bidir Tier-1 testing is all you need
Description:
Optical loss test set (OLTS) delivering insertion loss, optical return loss and fiber length measurements at two wavelengths in five seconds.
Key features:
- Certifies two fibers at two wavelengths under 5 seconds.
- Onboard assistant and diagnosis to eliminate reference errors and negative loss.
- Bright, 7-inch high-resolution touchscreen.
- Best-in-class singlemode distance range of 200 km.
Protect your investment with premium support services
At EXFO, we are deeply committed to delivering service excellence to our customers. We understand the importance of precision and reliability, which is why we offer expert calibration, dependable repairs, and industry-leading warranties to keep your test instruments performing at their best.
Our services include :
Repairs (RMA)
Calibration services
Extended warranty
Customized service
Service centers
