Full specifications

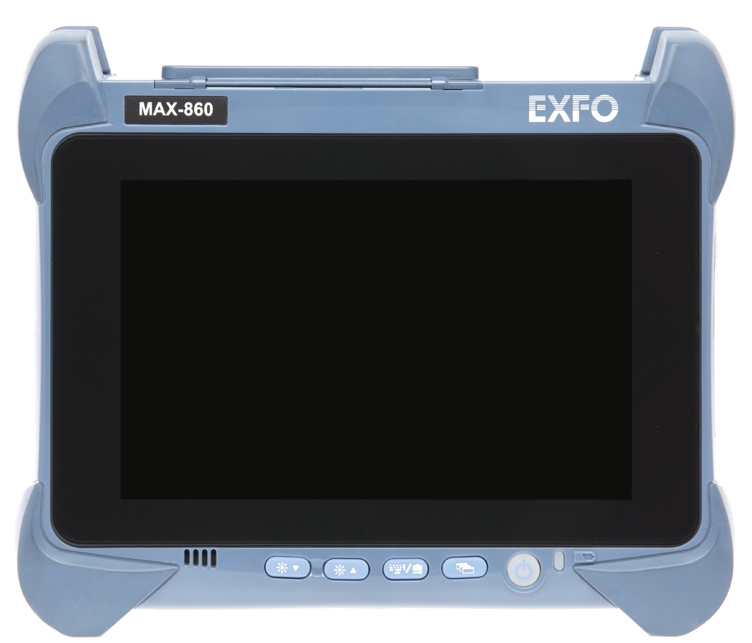

MAX-860 - 400G Ethernet tester with 100G-start option

The ultimate in flexibility with a journey-to-400G design. Go with 400G now, or start with up-to-100G testing, and upgrade to 400G later.

Overview

The ultimate in flexibility with a journey-to-400G design. Go with 400G now, or start with up-to-100G testing, and upgrade to 400G later.

Key features

1G to 400G Ethernet testing capabilities based on IEEE standards
Start with up-to-100G testing and upgrade to 400G later, or go with 400G right now
Fibre Channel testing from 1X to 32X
Validate pluggable optics fast, including AOC and DAC cables, with EXFO’s iOptics automated intelligent test application
Automatic plug-and-play transceiver detection with the iOptics test application
Support for the most popular pluggables (QSFP-DD and OSFP) and the latest QSFP112 transceivers

Key features

1G to 400G Ethernet testing capabilities based on IEEE standards

Start with up-to-100G testing and upgrade to 400G later, or go with 400G right now

Fibre Channel testing from 1X to 32X

Validate pluggable optics fast, including AOC and DAC cables, with EXFO’s iOptics automated intelligent test application

Automatic plug-and-play transceiver detection with the iOptics test application

Support for the most popular pluggables (QSFP-DD and OSFP) and the latest QSFP112 transceivers

Applications

Core and metro-edge network testing

Data centers

4G/5G backhaul testing

Service activation

Technical specifications
Model	MAX-860
Storage	64G
Ethernet 10/100/1000M	•
Ethernet 10/100/1000M and 10G	—
100G	—
Dual-port testing	•
Quad-port testing	—
IPv6	•
MPLS	•
EtherBERT	•
RFC 2544	•
EtherSAM ITU-T Y.1564	•
Multistream traffic generation	•
RFC 6349	•
Carrier OAM	•
Ethernet filter and capture	•
Ethernet Through Mode	•
SONET/SDH	—
DSn/PDH	—
OTU1, OTU2	—
OTU4	—
Network interfaces (summary)	1 RJ45: 10/100/1000BASE-T 2 SFP/SFP+: Up to 1 Gbit/s (MAX-860) 10/100/1000BASE-T with copper SFP 1 GigE maintenance port
Additional connectors	3 RJ48C (DSn/PDH); EXT CLK; Micro SD card slot; Mic./Headset jack; USB 3.0 port (1); USB 2.0 port (2)
Electrical Ethernet interfaces	One port: 10/100BASE-T half/full duplex, 1000BASE-T full duplex Automatic or manual detection of straight/crossover cable
Synchronization interfaces	External Clock DS1/1.5M; External Clock E1/2M; External Clock E1/2M Trigger 2 MHz

General specifications
Size (H x W x D)	210 mm x 254 mm x 66 mm (8 ¼ in x 10 in x 2 5/8 in)
Weight (with battery)	2.1 kg (4.6 lb)
Temperature	Operation: 0 °C to 40 °C (32 °F to 104 °F)^c Storage^b: –40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity	0% to 95%, non-condensing
Processing	Dual-core processor / 4 GB RAM / Windows 10
Display	Multitouch, widescreen, color, 1280 x 800 TFT, 203 mm (8 in)
Interfaces	RJ45 LAN 10/100/1000 Mbit/s Two USB 2.0 ports One USB 3.0 port Micro SD card slot 3.5 mm headset/microphone port
Storage	64 GB internal memory (flash)
Battery	Rechargeable Li-ion smart battery
Power supply	AC/DC adapter, input: 100–240 V; 50/60 Hz; 2.5 A max, output: 24 V; 3.75 A
^{a. All specifications valid at 23 °C (73 °F). b. Battery storage temperatures: –20 °C to 60 °C (–4 °F to 140 °F) for shipping, and –20 °C to 45 °C (–4 °F to 113 °F) for long-term storage.}
