FIP-500 - Fiber inspection scope

Name: FIP-500 - Fiber inspection scope
SKU: FIP-500

Overview

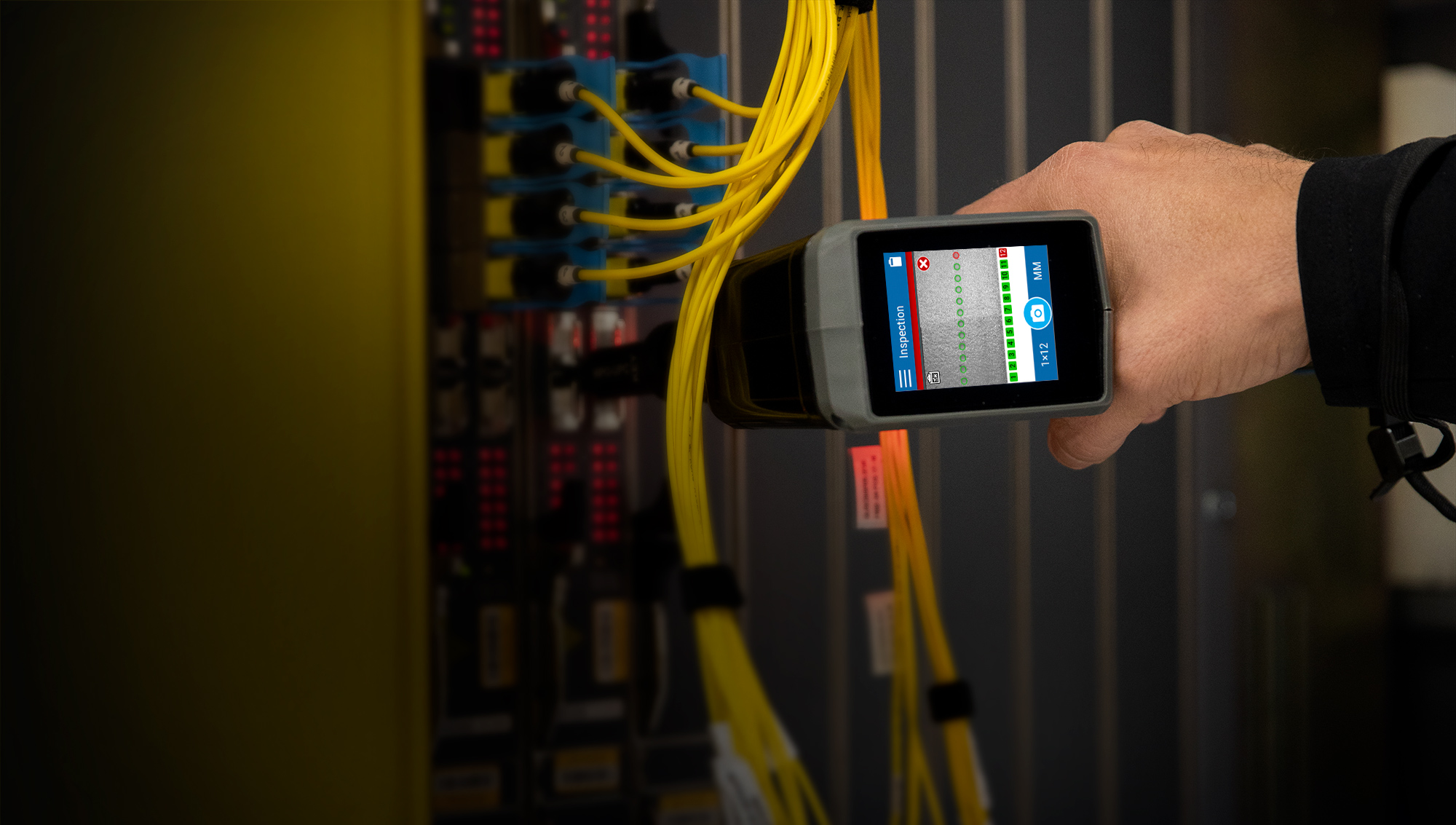

FIP-500 is a fully automated fiber inspection scope that uses AI-driven endface analysis to inspect simplex, duplex and multi-fiber connectors. It enables zero-button testing with reliable, repeatable results and automatic data saving.

Key features

First AI-powered inspection in the industry for enhanced detection accuracy even in poor lighting or dirty fiber scenarios
Fastest inspection in the industry (in under 10 seconds for MPO-12)
Best-in-class optical performance for accurate and repeatable results
Zero-button inspection: 100% automated from insertion to data saving
Wide array of adapter tips for single, duplex and multi-fiber connectors (e.g., LC, SC, ST, MPO, OptiTap®, OptiTip®)
Smartphone-grade 2.4-inch color touchscreen

First AI-powered inspection in the industry for enhanced detection accuracy even in poor lighting or dirty fiber scenarios

Fastest inspection in the industry (in under 10 seconds for MPO-12)

Best-in-class optical performance for accurate and repeatable results

Zero-button inspection: 100% automated from insertion to data saving

Wide array of adapter tips for single, duplex and multi-fiber connectors (e.g., LC, SC, ST, MPO, OptiTap®, OptiTip®)

Smartphone-grade 2.4-inch color touchscreen

Applications

Central offices, exchanges and headends
Data centers
Wireless (e.g., 5G, FTTA, DAA, small cells)
Fiber-to-the-home (FTTH)

Central offices, exchanges and headends

Data centers

Wireless (e.g., 5G, FTTA, DAA, small cells)

Fiber-to-the-home (FTTH)

Key Specifications

To view the full specifications, download the spec sheet below.

Technical specifications
Automatic adjustment	Fully automated
Connectivity	Bluetooth / WiFi / USB-C
Display and image integration	Onboard touchscreen
Fiber connector type	SF / MPO
Product type	Handheld
Test type	Fiber inspection

Spec sheet

Highlights

Leverage zero-button MPO inspection.

Inspecting an MPO-12? Simply affix the FIP-500 to the connector endface and—in less than 10 seconds—a pass/fail result is automatically obtained and saved without the need for any settings or further manipulation.

Less handling, more doing.

Quick-connect tips: Swap tips in a quarter-turn click, a small but life-changing innovation. No loose parts, not a second wasted.

Longer reach: By design, the FIP-500 provides longer reach and better handling for inspection in dense fiber environments or on top of telecom towers.

Intuitive graphical user interface (GUI): Leveraging the capabilities of the touchscreen, the GUI is very user-friendly for any technician, regardless of their experience.

Test all day with lots of battery life and memory.

Long battery life: The FIP-500 is powered by a Lithium-Polymer rechargeable battery which can support a full day of continuous use.

Memory space: With an internal memory that can save up to 1800 MPO test results or 10 000 single-fiber test results, there is no need to stop and offload results. Bluetooth connectivity ensures that these results can be shared easily.

These features, added to an ergonomic hand grip, all come together in helping the technician to close jobs all day without any interruption. This battery life and memory space combo is unique in the industry—and will give field teams equipped with the FIP-500 yet another solid advantage on the competition.

Lowering the cost of ownership.

Every aspect of the FIP-500 has been designed to make savings in time and expenses, lowering its overall cost of ownership.

No training required: Zero-button, fully automated inspection combined to an intuitive GUI makes it easy for any technician to make the most of the FIP-500, without training.

Less tips and no loose parts: By default, the FIP-500 provides a longer reach than regular tips, reducing the overall number of tips that a technician needs to carry around. The simple yet innovative quarter-turn mechanism to swap tips means that there are no loose parts when changing them, hence lowering the risk of losing items.

Future-proof: The FIP-500 supports the inspection of MPO connectors with up to 4 rows by default. Periodical releases will enable new software functionalities.
