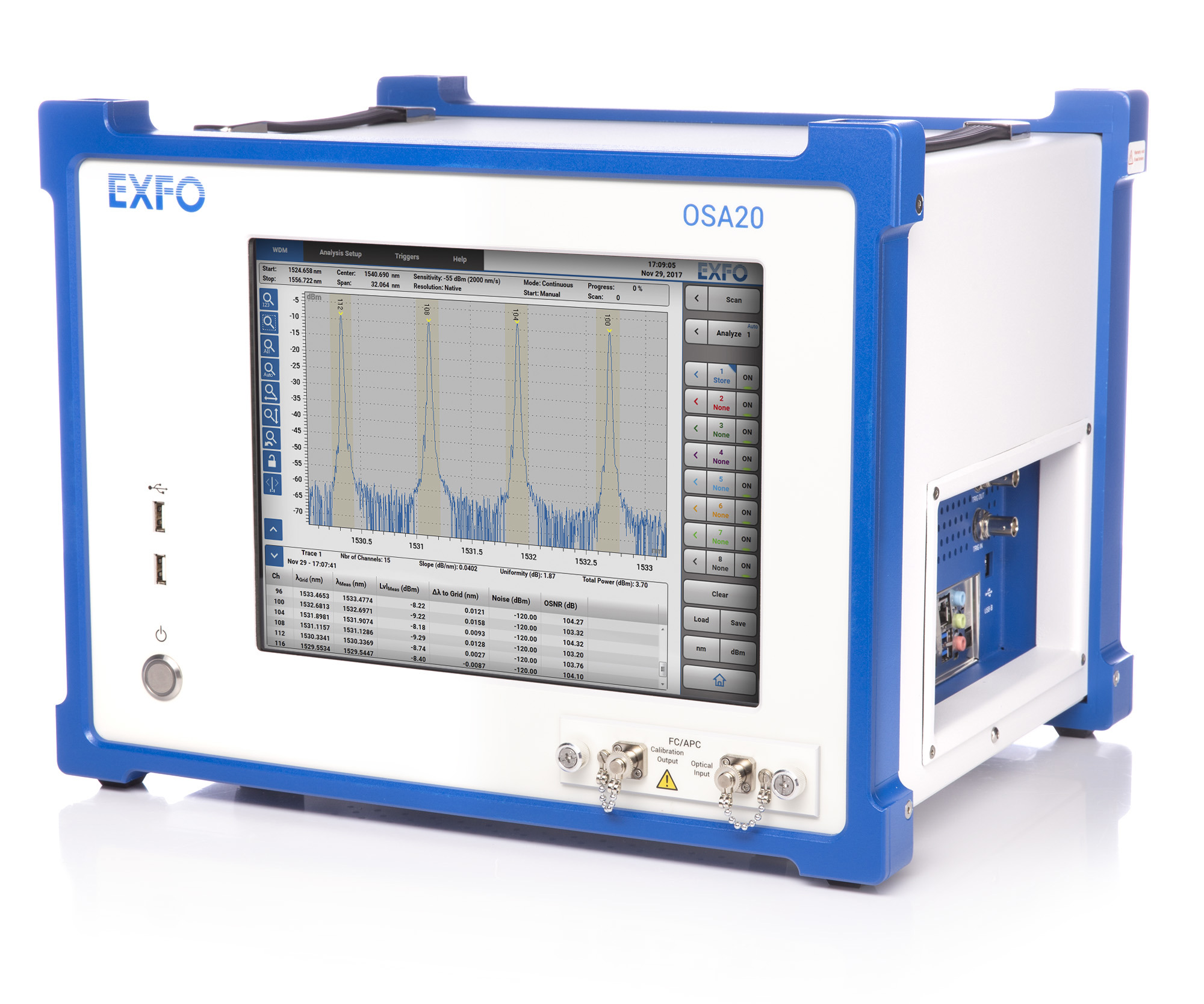

OSA20 - optical spectrum analyzer

Overview

Discontinued date: 11/25/2024
End-of-service and support date: 11/25/2029
End-of-calibration date: 11/25/2029

Fastest diffraction-grating-based instrument operating from 1250 to 1700 nm. Provides fast, accurate, high dynamic range scan. Unique touch-sensitive display with multitouch gesture control.

Key features

Wavelength range from 1250 to 1700 nm
Excellent λ accuracy: ± 10 pm over C- and L-bands
Constant resolution bandwidth of 20 pm over the full spectral range
Exceptional sweep speed: up to 2000 nm/s
Sharpest monochromator edges & lowest optical rejection ratio
Device-specific analysis: Full suite of calculation tools

Wavelength range from 1250 to 1700 nm

Excellent λ accuracy: ± 10 pm over C- and L-bands

Constant resolution bandwidth of 20 pm over the full spectral range

Exceptional sweep speed: up to 2000 nm/s

Sharpest monochromator edges & lowest optical rejection ratio

Device-specific analysis: Full suite of calculation tools

Specifications

Technical specifications
Product type	Benchtop

Full specifications

Replacement products

FTBx-5245 5255 Field - Optical spectrum analyzers for the field

In addition to delivering all the tools needed for maximum field efficiency, the FTBx-5245/5255 provides improved reliability, accuracy and speed of test. Compatible with FTB-2 Pro, FTB-4 Pro and LTB-8 platform.

FTBx-5245 5255 Lab - Optical spectrum analyzers for the lab

Highly accurate, easy-to-use intelligent optical spectrum analyzers (OSAs) for analysis of CWDM and DWDM networks.
