Overview

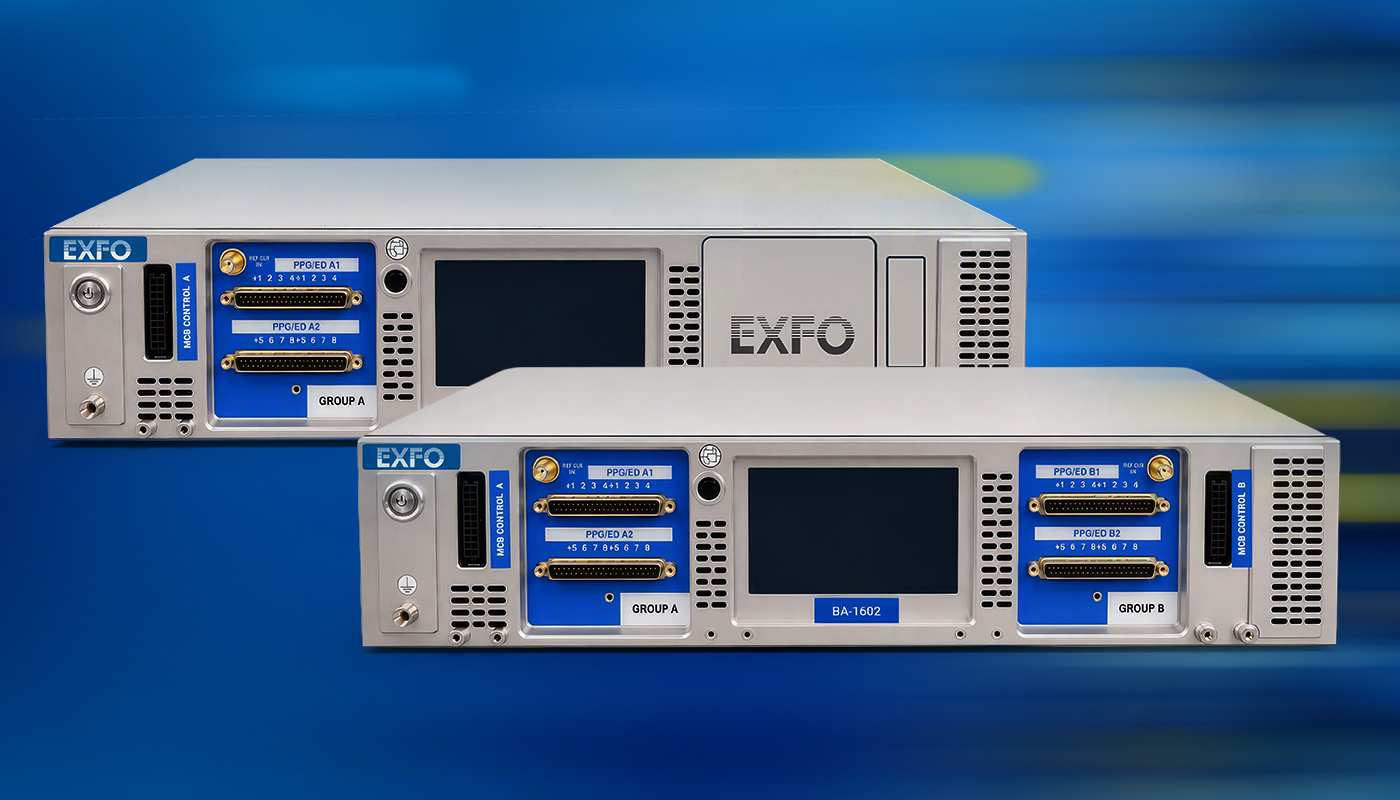

The BA-1602 is a world-class series of 1.6T electrical BER testers, with 8- and 16-channel PAM4 coding options for ultimate flexibility, including LPO testing.

Key features

Full lifecycle validation for 1.6T, 800G and 400G across lab, fab and live environments.
Ensuring data integrity over ultra-fast connections and testing of pre/post FEC BER, symbol error distribution and FEC margin
High-level equalization capabilities to test challenged interconnects
Block error ratio (BLER) statistics and an efficient FLR estimation mechanism, addressing the time constraints of ultra-low BER measurements

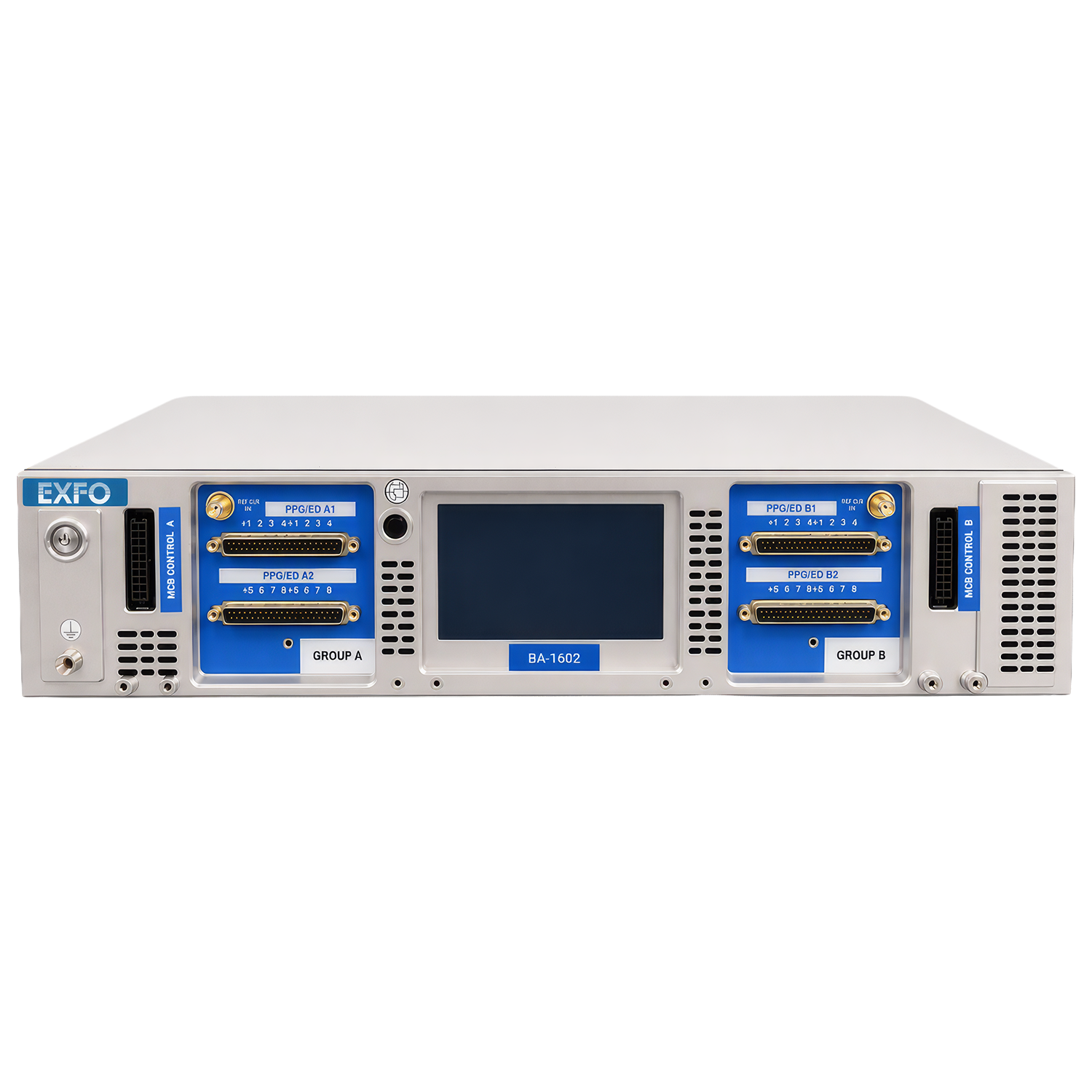

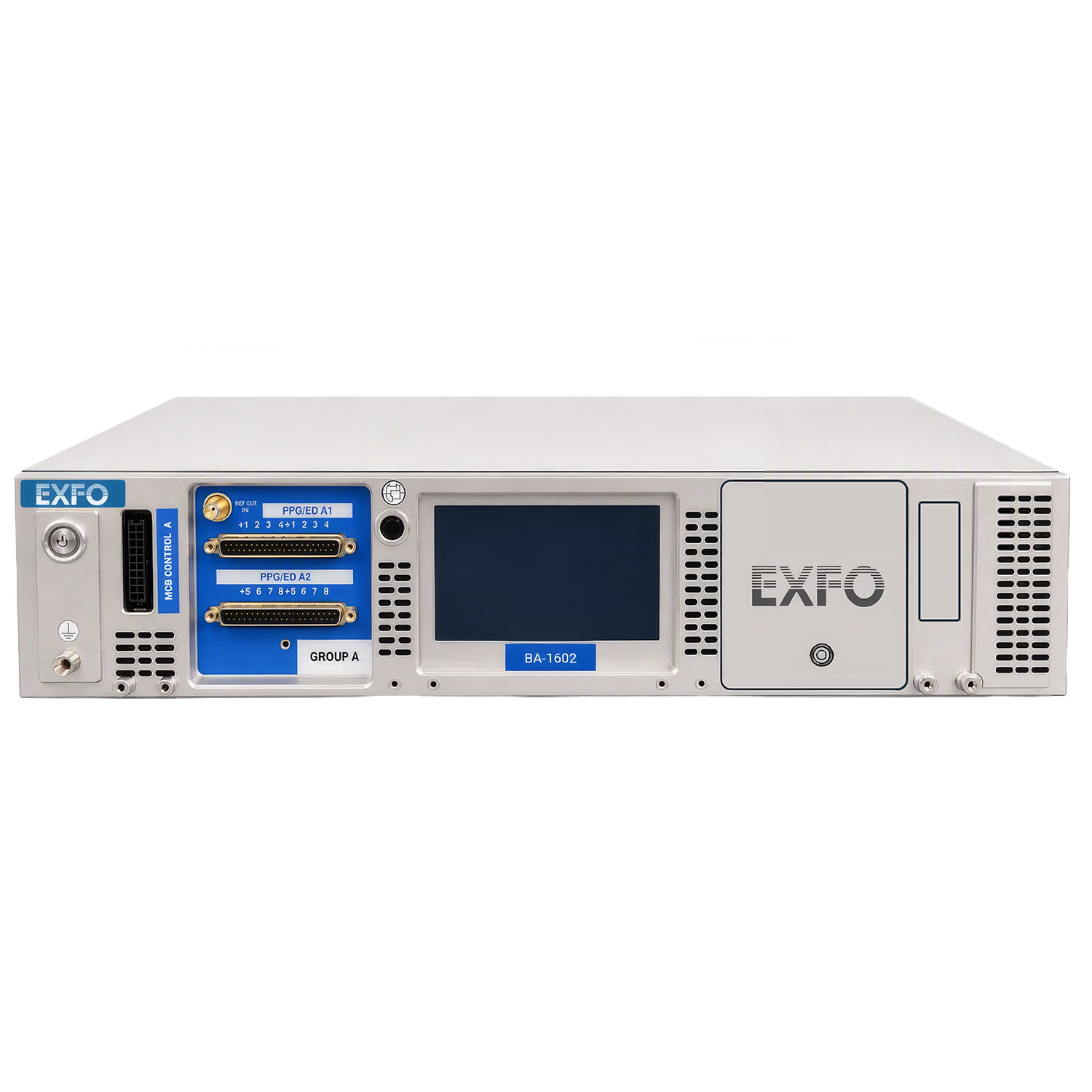

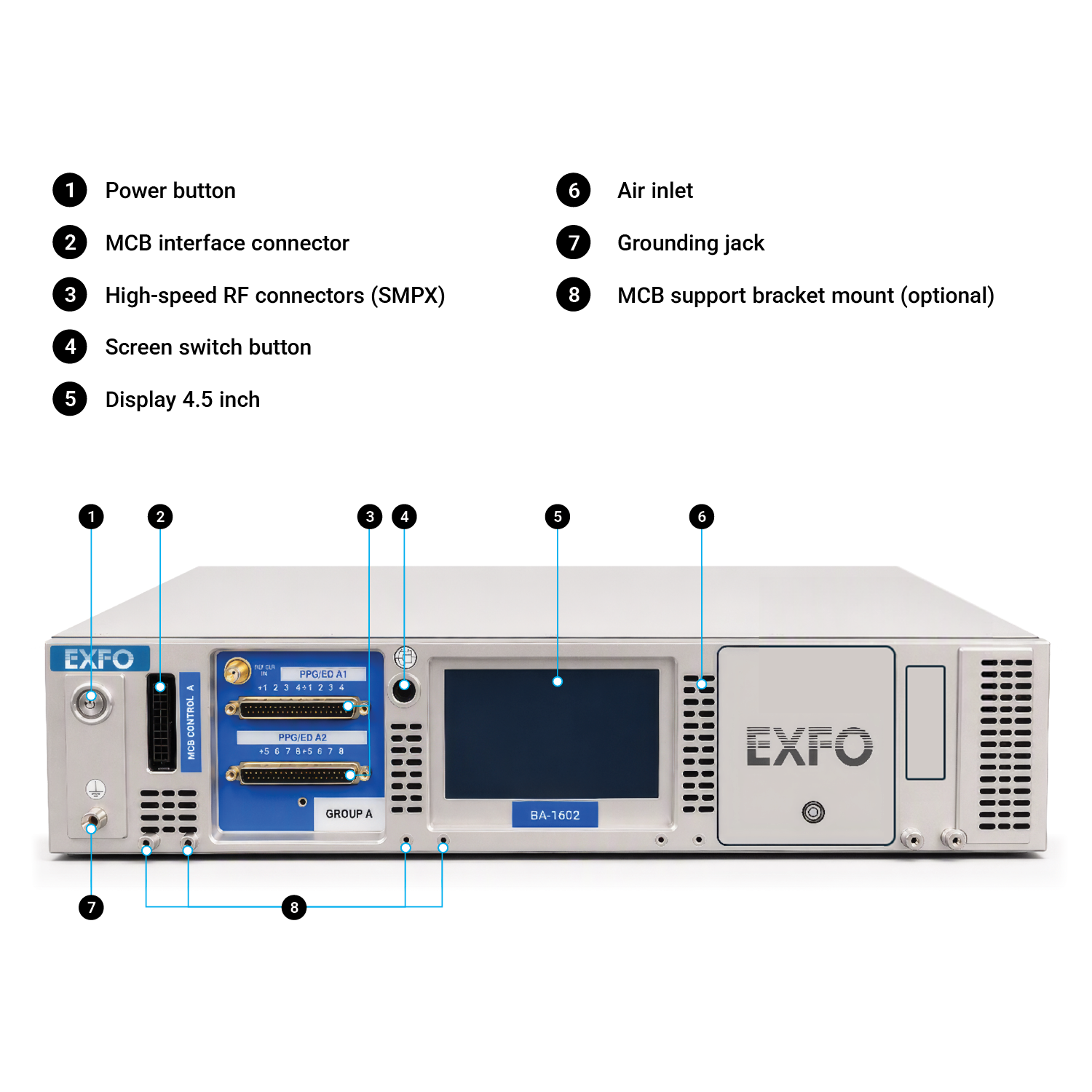

Single RF SMPX connector supporting 8 channels at 212.5G and a dual RF SMPX supporting 16 channels at 212.5G—enabling parallel testing of BER/FEC/BLER
Streamline workflows, and reduce learning curves

1.6T, 800G and 400G Ethernet

Full lifecycle validation for 1.6T, 800G and 400G across lab, fab and live environments.

Real-time FEC generation & analysis

Ensuring data integrity over ultra-fast connections and testing of pre/post FEC BER, symbol error distribution and FEC margin

LPO, RTLR, AEC, ACC, DAC

High-level equalization capabilities to test challenged interconnects

BLER

Block error ratio (BLER) statistics and an efficient FLR estimation mechanism, addressing the time constraints of ultra-low BER measurements

Dual-port configuration

Single RF SMPX connector supporting 8 channels at 212.5G and a dual RF SMPX supporting 16 channels at 212.5G—enabling parallel testing of BER/FEC/BLER

User-friendly GUI

Streamline workflows, and reduce learning curves

Applications

Hyperscalers and AI data centers
Transceiver and cable manufacturers
Electrical test and validation of 1.6T transceivers
Testing high throughput in manufacturing
800G/1.6T interconnect testing, including LPO

Hyperscalers and AI data centers

Transceiver and cable manufacturers

Electrical test and validation of 1.6T transceivers

Testing high throughput in manufacturing

800G/1.6T interconnect testing, including LPO

Highlights

Supporting all 800G/1.6T interconnect testing, including LPO

The BA-1602 is an electrical 800G and 1.6T bit-error-rate tester (BERT) specifically built for testing and validating linear-drive pluggable optics (LPO) on production floors and in R&D labs. It detects signal degradations like reflections, intersymbol interference, and FEC tail instability.

Design, validate, deliver 1.6T

The BA-1602 delivers full lifecycle electrical BER validation for 1.6T, 800G and 400G Ethernet across lab, fab and live environments. It supports 8- and 16-channel PAM4 coding at 106.25, 53.125 and 26.5625 GBd per lane.

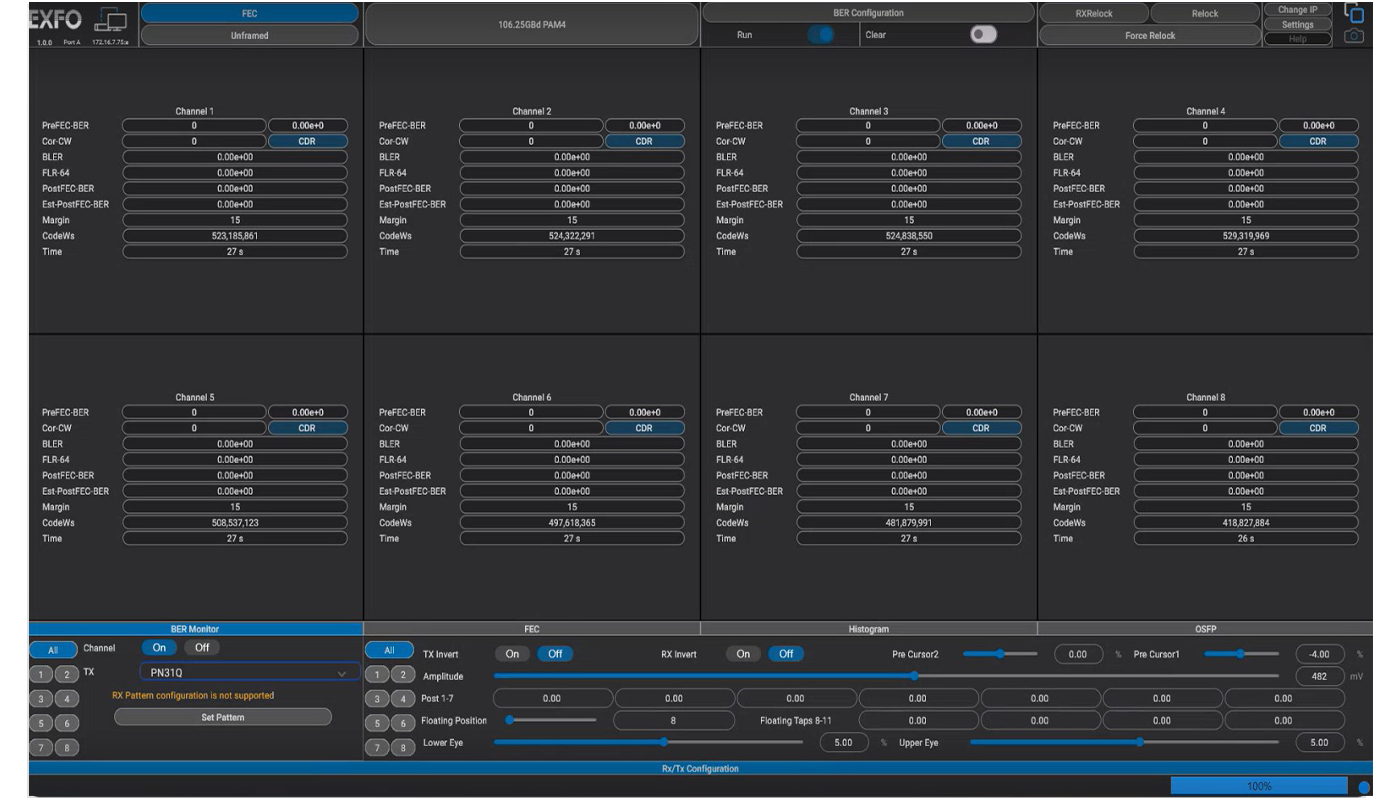

Users can run high-performance signal integrity and BER testing, generate and analyze FEC, monitor block error ratio (BLER), and access I²C and I3C registers for fast, low-level diagnostics and debugging.

Simplified workflows

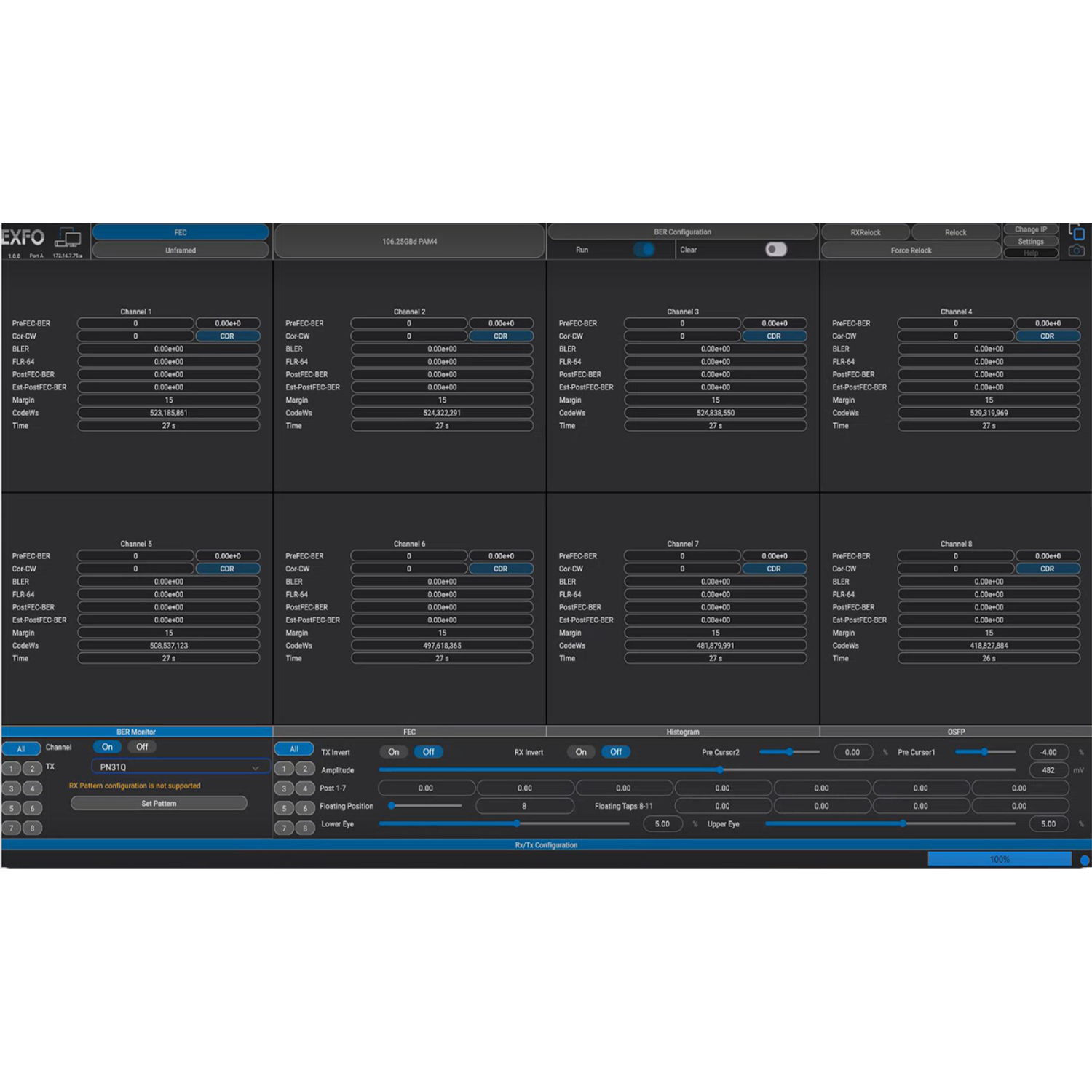

Designed for speed and simplicity, the BA-1602 series features an intuitive GUI, powerful automation and save-and-load functionality to streamline workflows and reduce setup time.
