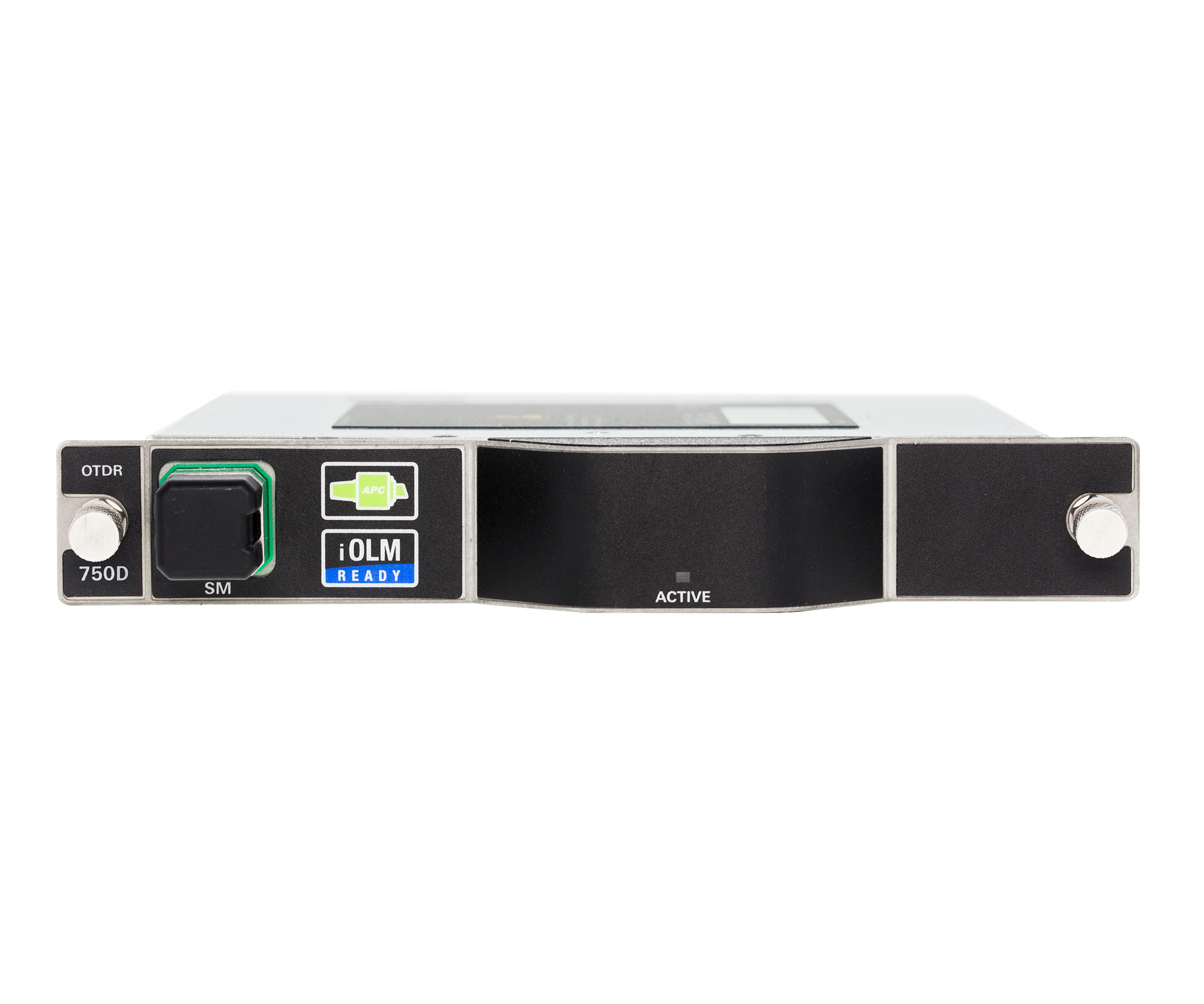

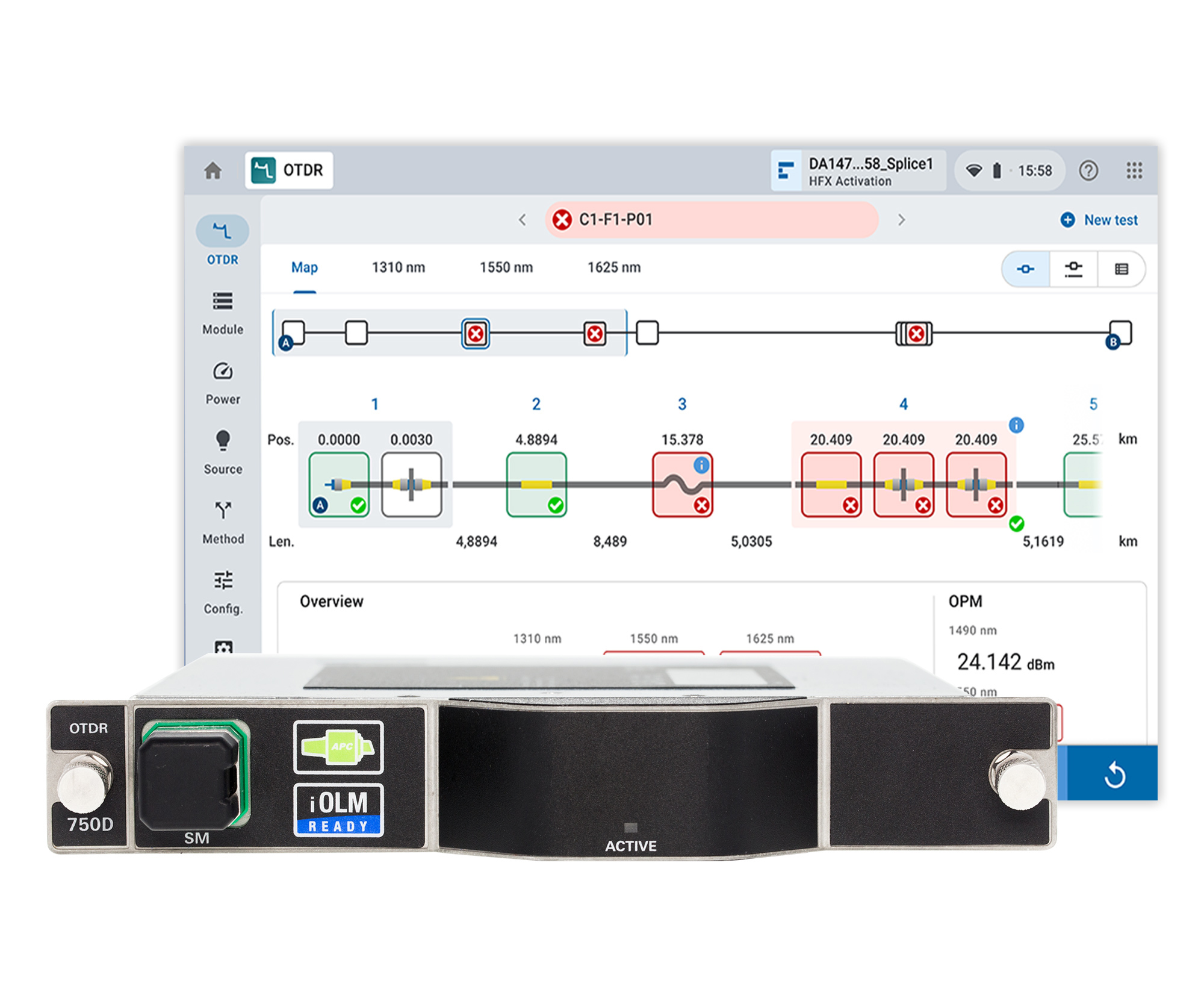

FTBx-750D - metro/longhaul OTDR

Overview
EXFO's FTBx-750D is a high-resolution metro/longhaul OTDR for accurate fiber characterization, with up to 50 dB dynamic range and 0.5 m event dead zone. Supports metro, middle-mile, longhaul and data center interconnect (DCI) testing.

Key features

  • Dynamic range of up to 50 dB
  • Event dead zone of 0.5 m and attenuation dead zone of 2.5 m
  • Up to 256 000 sampling points

Applications

  • Metro & middle-mile network testing
  • Data center interconnect (DCI) testing
  • Longhaul network testing

Key Specifications

To view the full specifications, download the spec sheet below.

Technical specifications
Calibrated wavelengths 1310 / 1550 / 1625

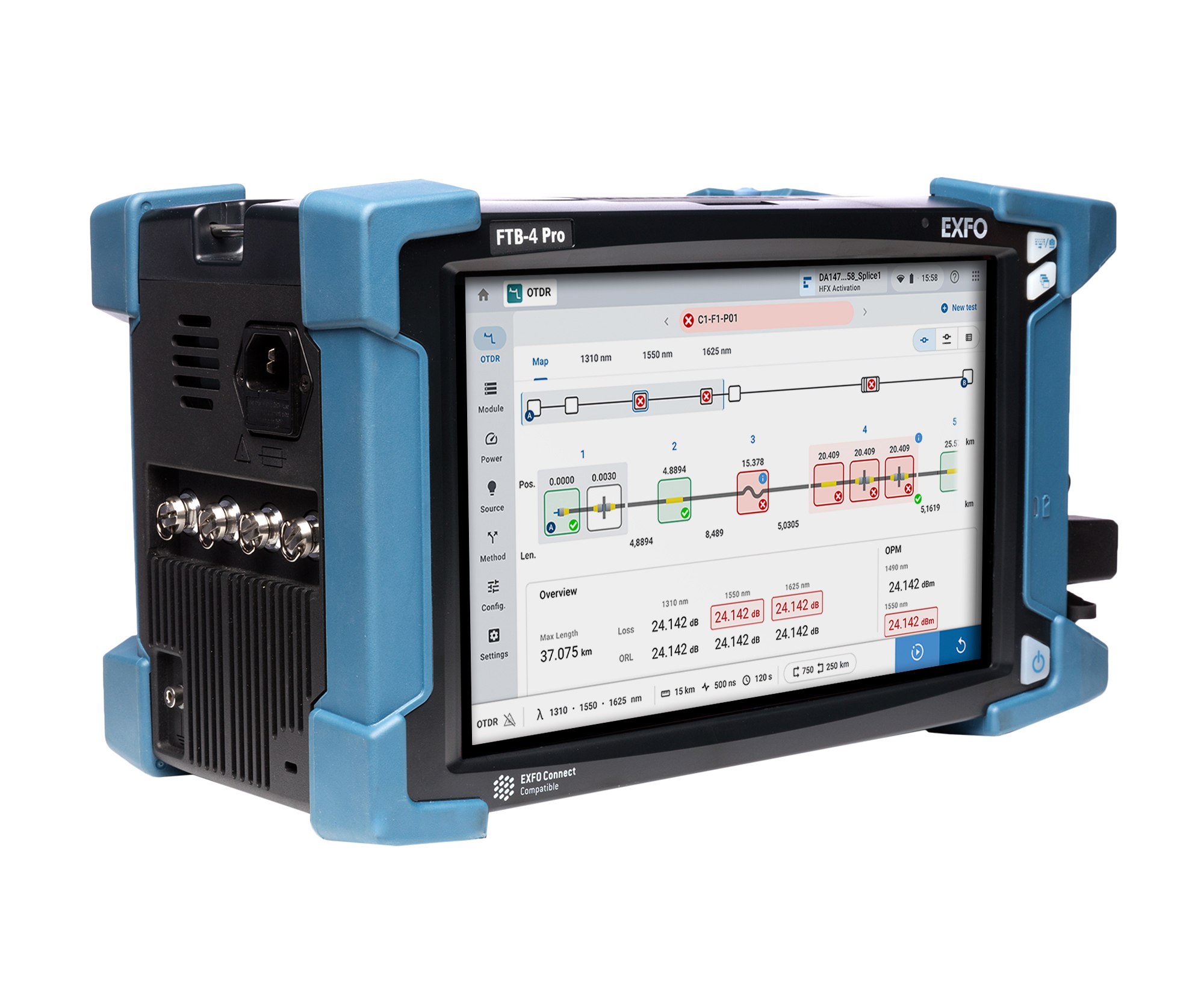

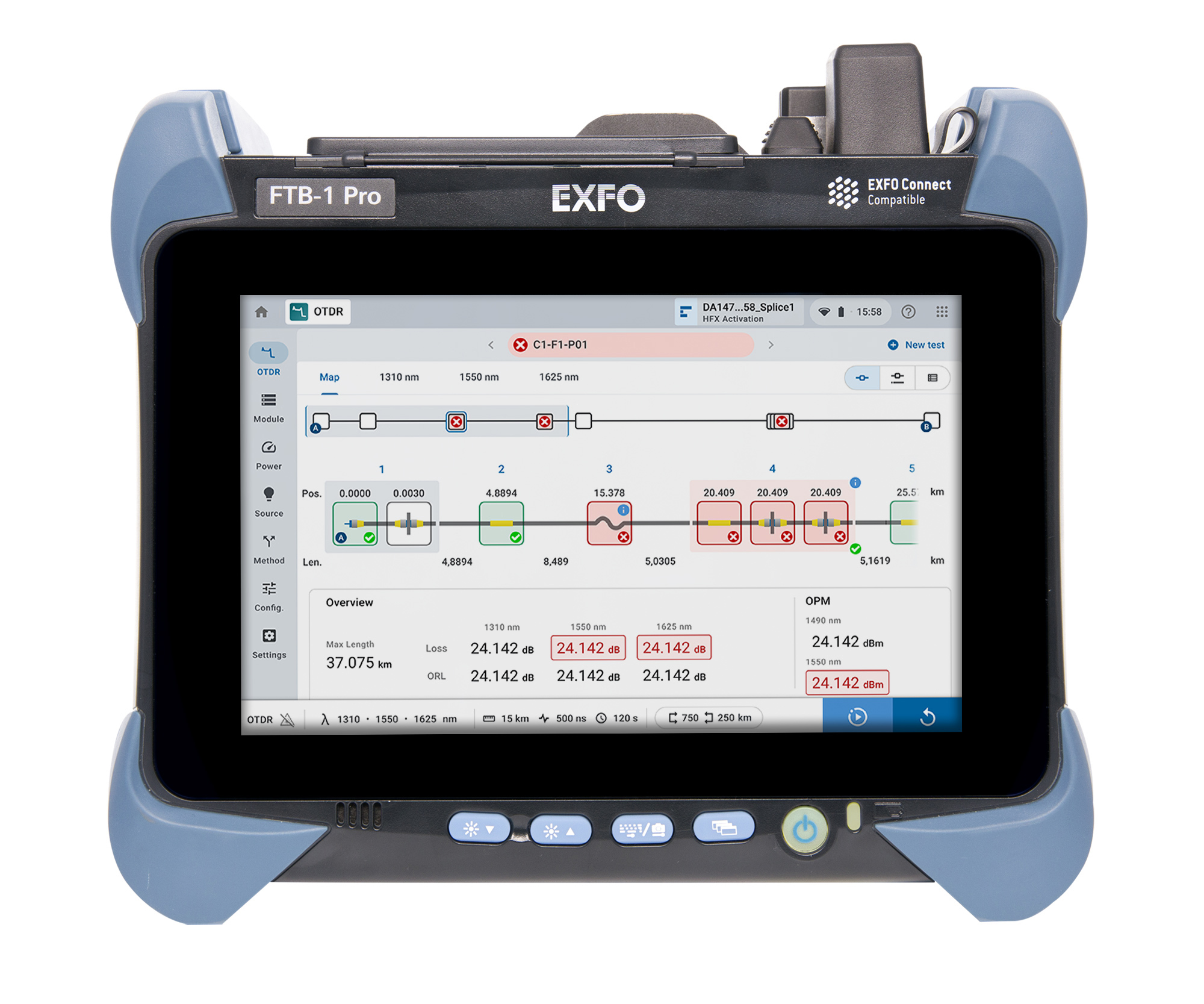

Compatible products FTB-1V2-PRO / FTB-2-PRO / FTB-4-PRO / LTB-2 / LTB-8 / LTB-12
Dynamic range (dB) 50 dB
EXFO Exchange compatibility Yes

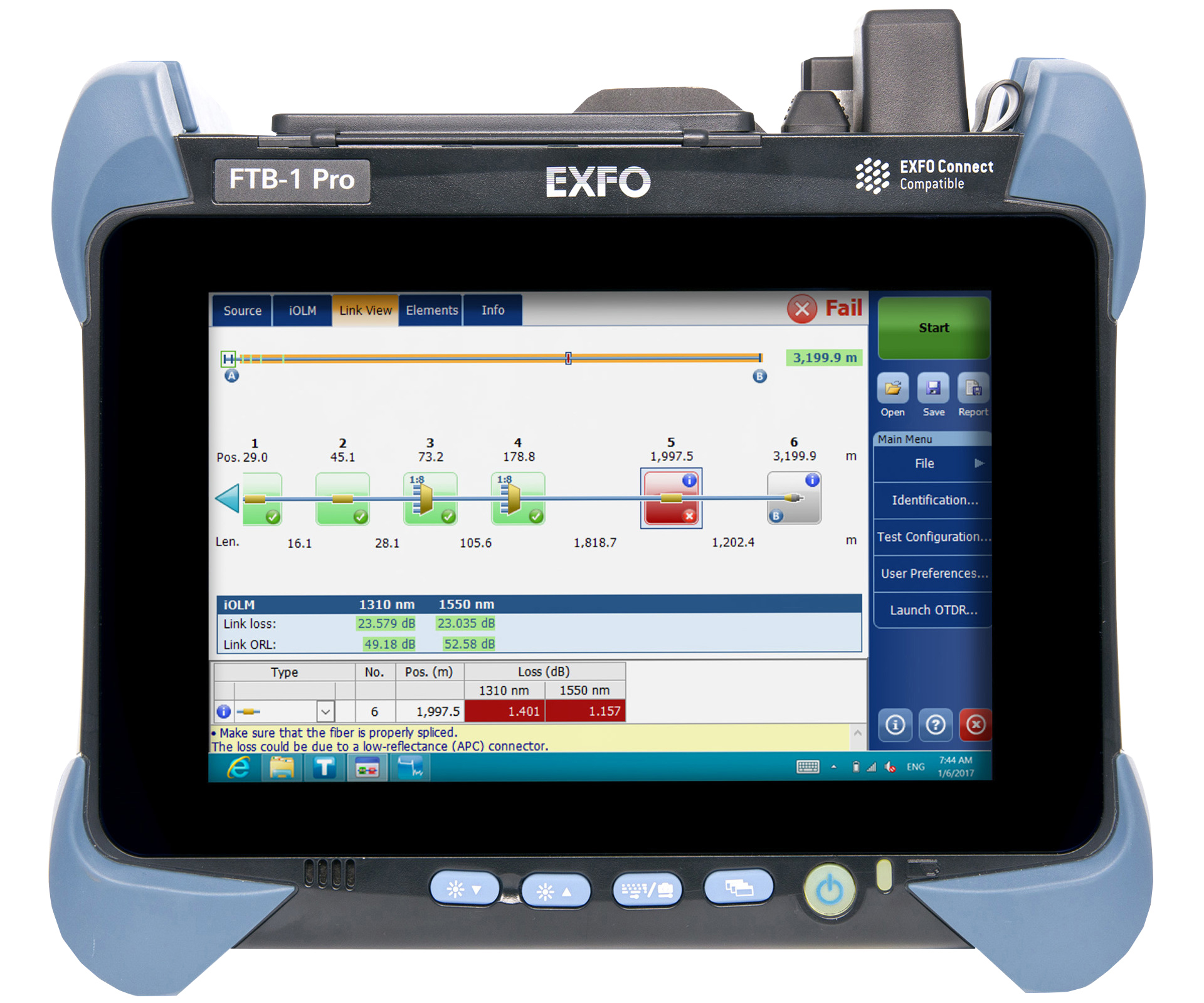

iOLM-ready Yes
Product type Module
Test type Fault location / Fiber characterization / Fiber length / Loss / ORL
