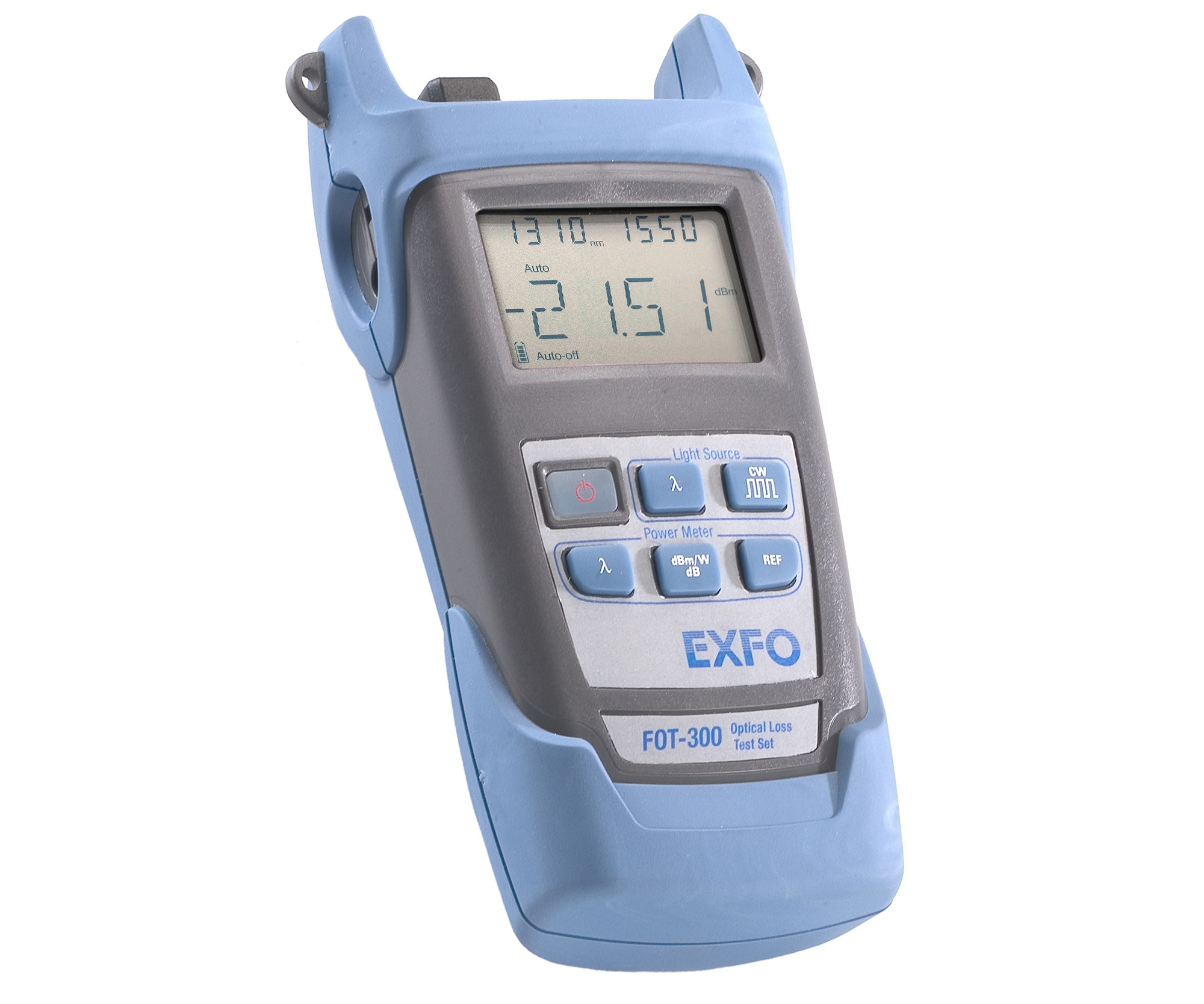

FOT-300 - Optical loss test set

Overview
FOT-300 is a handheld optical loss test set (OLTS) combining a light source and power meter for fiber-optic link-loss testing. It supports singlemode and multimode fibers with automatic wavelength identification and calibration parameter selection.

Key features

  • No offset nulling required
  • Power autonomy of 260 hours
  • Three-year recommended calibration interval, for  reduced cost of ownership

Applications

  • Data center and private networks
  • LAN/WAN
  • Link-loss characterization
  • Network certification

Key Specifications

To view the full specifications, download the spec sheet below.

Technical specifications
Automation Yes
Fiber connector type ST / SC / LC / E2000
Fiber type Singlemode / Multimode
Multiple wavelength measuring Yes
Product type Handheld
Test type Loss / ORL / Optical power
Tone detection Yes
Visual Fault Locator (VFL) No
Spec sheet

Resources

Spec sheet

FOT-300 optical loss test set (OLTS)
User manual

FPM-300 Power Meter, FLS-300 Light Source & FOT-300 OLTS
More resources and languages

Description

The FOT-300 combines a source port and a power meter. It offers up to three singlemode or two multimode sources on a single port and transmits with a wavelength-identification digital encrypted protocol, so that any compatible unit—such as the FPM-300 Power Meter or another FOT-300 Optical Loss Test Set—can automatically use the proper calibration parameters. This reduces the need for communication between the two technicians and decreases the potential for error.

An FTTx test solution

This product is part of EXFO's series of FTTx optical test products. It allows for the testing of passive optical networks (PONs) at the three main wavelengths (1310, 1490 and 1550 nm) used in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks and complies with the ITU-T G.983 and G.984 Recommendation series and the IEEE 802.3ah standard.

Distant referencing

Signal encrypting can also give the receiving end information on the power to be used as reference, helping ensure efficient referencing, even when the two units are far apart.

No offset nulling

Thanks to its unique design, the FOT-300 Optical Loss Test Set reduces measurement time in typical measurement situations, as the need for an offset nulling is eliminated.
