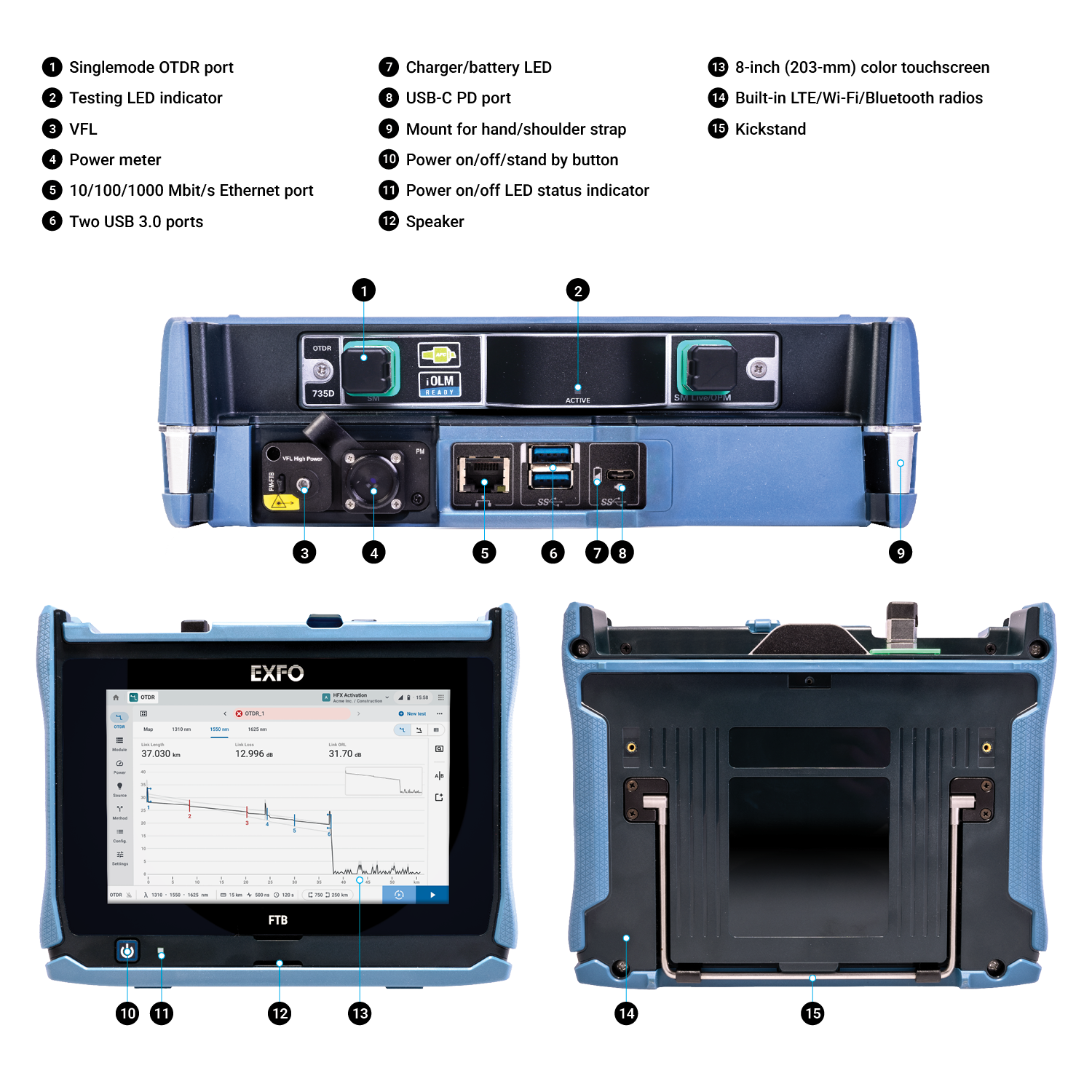

FTB Lite 735D - connected metro/PON FTTx/MDU OTDR

Optimized for metro core and FTTx/MDU fiber deployments and troubleshooting.

Key features

Free 36-month basic data plan provided for real time visibility
8-inch (203-mm) color touchscreen for use in bright sunlight or any other environment
Dynamic range up to 45 dB for up to 144 km point-to-point (P2P)
Event dead zone (EDZ) / Attenuation dead zone (ADZ): 0.7/2.5 m in SM and MM, PON dead zone 35 m in SM
Live fiber testing
FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter
Industry-leading onboard PDF reporting and post-processing

Applications

FTTx/MDU testing within PON
Metro/core network testing (P2P)
Manufacturing automation

Specifications

Technical specifications
Calibrated wavelengths 850 / 1300 / 1310 / 1342 / 1358 / 1490 / 1550 / 1577 / 1625 / 1650
Dynamic range (dB) 45 dB
Exchange compatibility Yes
iOLM-ready Yes
Product type Handheld
Spec sheet

Test procedure compliance matters

Nearly 40% of organizations have experienced major outages due to human error in the past three years, with 85% of these incidents resulting from staff failing to adhere to methods of procedure (MoPs) or from flawed procedures.​ (Study by Uptime Institute, 2023)​.

Always-on connectivity

The FTB Lite Series builds upon EXFO’s innovation in OTDR testing with a secure Connected First™ approach that complements its dedicated and rugged design. Always-on and seamless connectivity to EXFO Exchange delivers unprecedented gains in compliance, efficiency, security and visibility.

  • Streamlined compliance and automated validation: Automated job tracking and real-time reporting confirm adherence to methods of procedure (MoP) ensure compliance with testing standards while reducing errors and administration time.
  • Enhanced collaboration and efficiency: Real-time data sharing, automated uploads, and cloud-based reporting enable seamless teamwork, faster decision-making, and accelerated project timelines.
  • Valuable insights: Automated access to comprehensive live data to perform analytics and extract insights, enabling informed decision-making and planning.

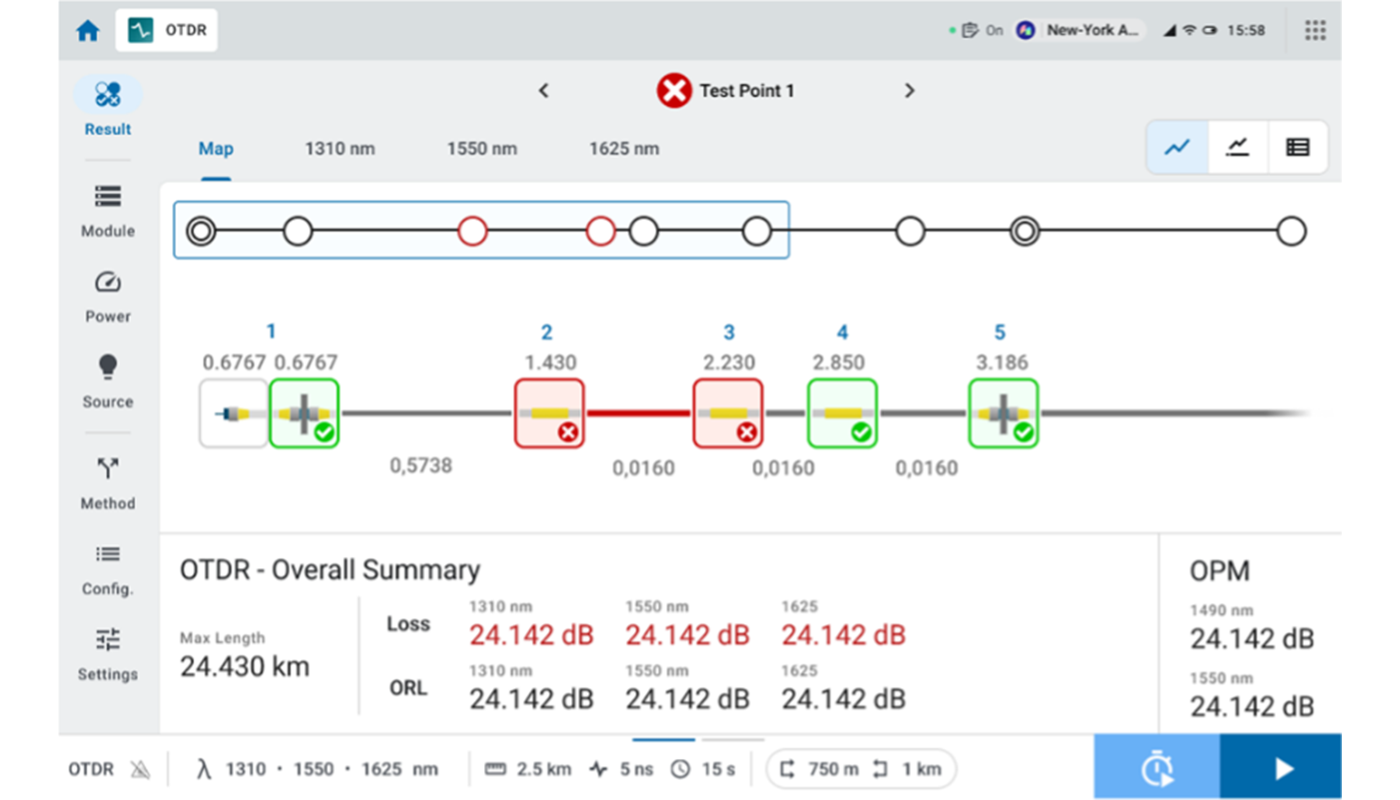

Icon-based mapping

Optical Link Mapper (OLM) is included with all FTB Lite OTDRs.

OLM interprets OTDR traces automatically and provides an icon-based view of the elements on the link:

  • Automatic analysis of multiple wavelengths with a consolidated link view display.
  • Synced with events and placed below the linear view to see all events on the link.
  • Display of end-to-end link length, loss and ORL according to pass/fail settings.
  • Automatic parameter settings and clear go/no-go results.
  • Prompt guidance on where and what the network issues are.
