In-Service Pol-Mux OSA: The Ultimate OSNR Testing Solution

Caractéristiques principales

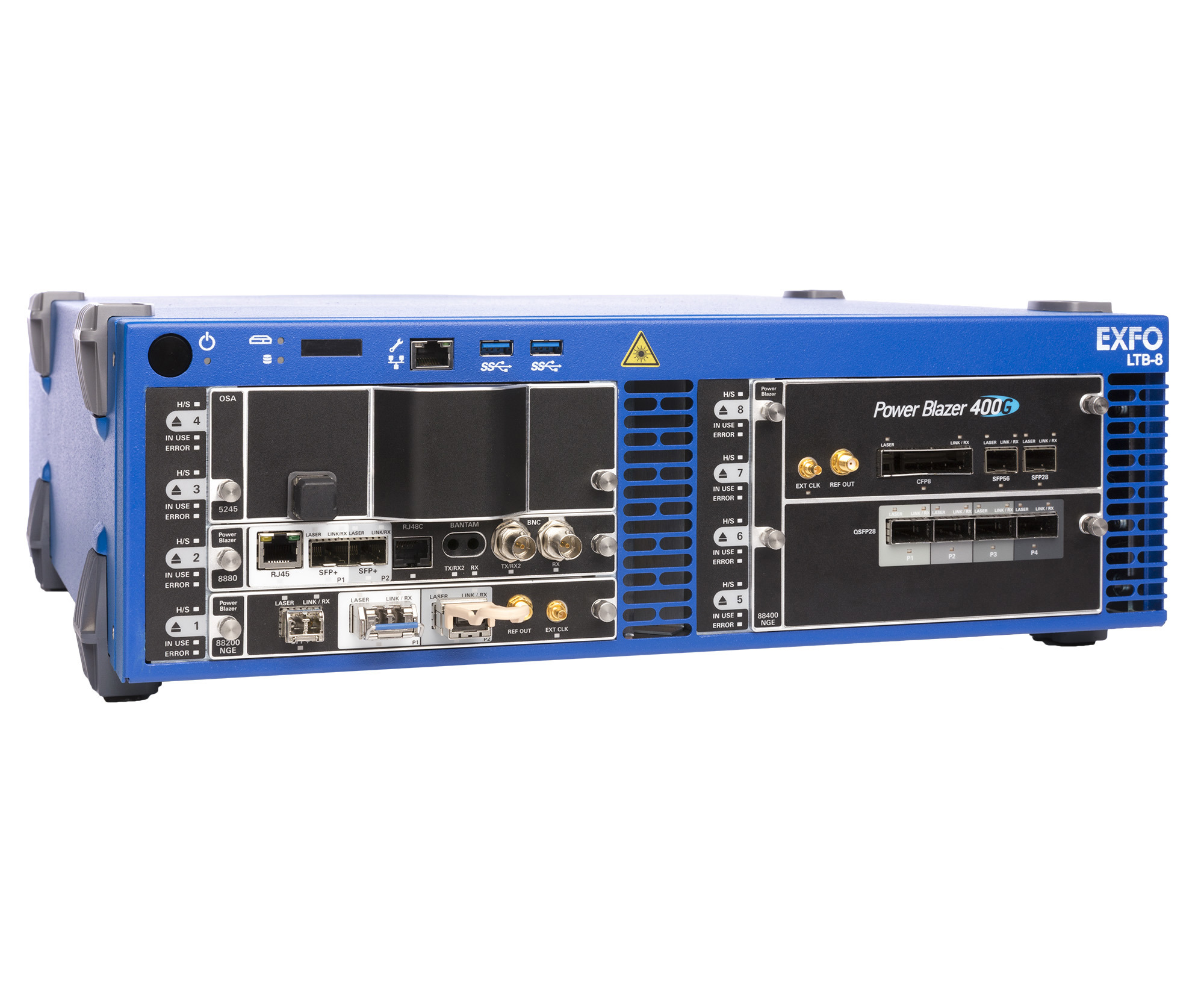

Idéal pour le terrain et le laboratoire : compatible avec les plateformes FTB-2, FTB-2 Pro, FTB-4 Pro et LTB-8

Flexibilité pour l'analyse de WDM, EDFA, dérive, transmittance spectrale et laser Fabry-Perot et DFB

Large éventail de mesures (SMSR, largeur spectrale FWHM, largeur de ligne 20 dB)

Utilisation d'un seul bouton pour une configuration facile et des mesures automatiques

Description

The FTBx-5245/5255 is an easy-to-use OSA offering a wide range of measurement modes tailored to the needs of users working in R&D and manufacturing.

Powerful features

Laser analysis

Make sure that your transmitters are within specifications. With the DFB Laser Analysis feature, you can characterize a DFB laser source for central wavelength, peak power, bandwidth, SMSR, and much more.

Automatically characterize Fabry-Perot lasers for central wavelength, RMS width and full-width half-max (FWHM).

Accurate spectral transmittance

With the advent of larger spectral content through the implementation of 100G+ signals, knowing the bandwidth of a given filter is critical. The Spectral Transmittance software feature compares the filtered wavelength to the nominal one, showing insertion loss, channel isolation and bandwidth at different power levels.

OSNR measurements from 10G to 400G

The FTBx-5245/5255 family offers the most comprehensive set of OSNR measurement methods in the industry, from the IEC 61280-2-9 method for 10G signals, all the way up to IEC 61282-12 method for coherent signals, as well as in-service approaches for 100G+ signals on live networks.

All-in-one OSA covering all spectral testing applications

The new FTBx-5255 is the only OSA on the market to address all applications in a single module:

High-speed DWDM, with OSNR measurements from 10G to 400G, including In-service Pol-Mux OSNR
CWDM spectral analysis
Spectral analysis of pluggable transceivers (CFP, XFP, etc.) on the O-band, 1300 nm region, as well as L-band transceivers
