740C xWDM OTDR Series - FTBx-740C - xWDM OTDR Series

Série d'OTDR accordables DWDM en bande C et CWDM à 18 longueurs d'onde pour la caractérisation des liaisons Ethernet métropolitaines et des liaisons C-RAN passives. Ethernet métropolitain, PHY distant et caractérisation des liaisons C-RAN passives.

Caractéristiques principales

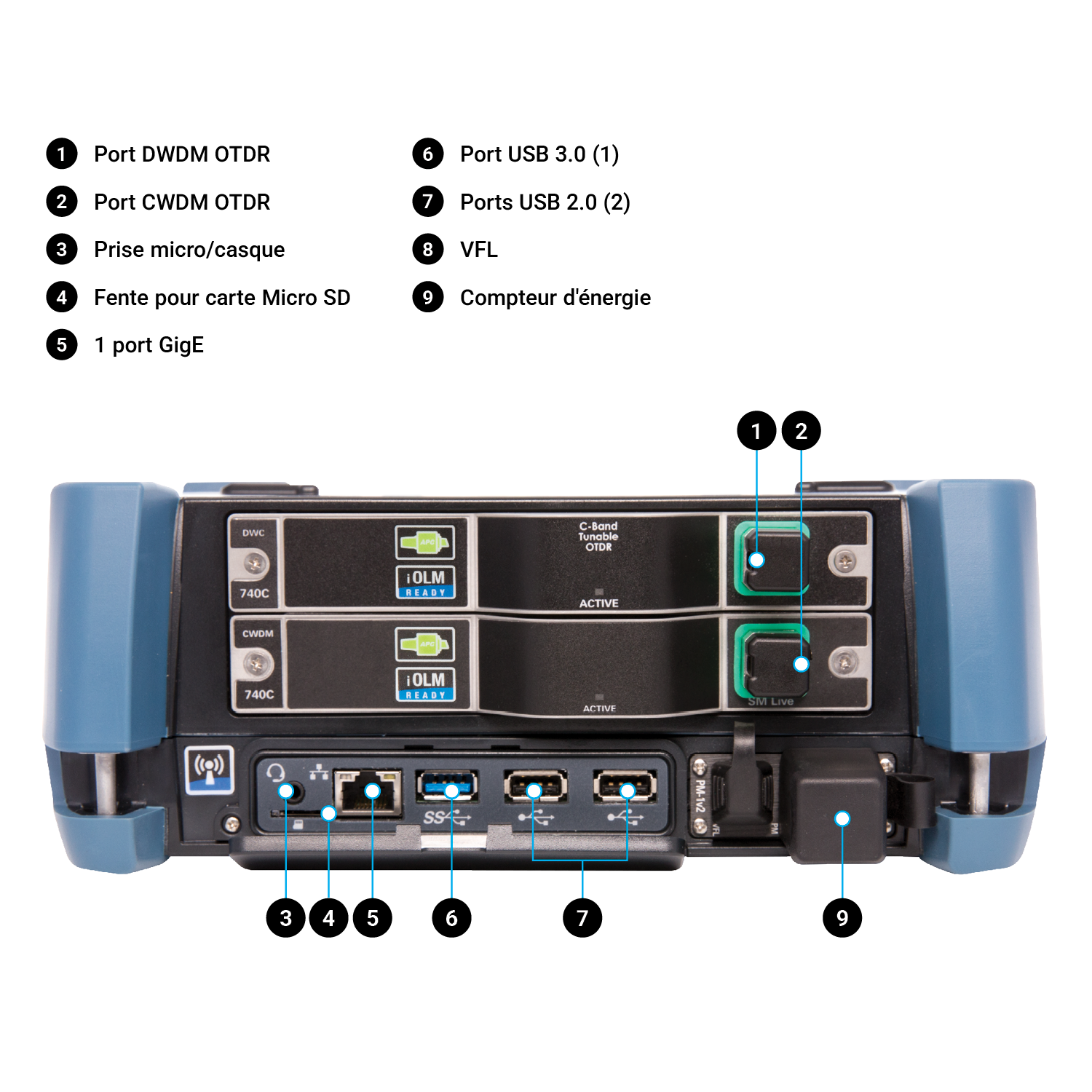

Combinaison CWDM+DWDM disponible dans le FTB-1 V2 compact
Sélection des canaux BANDE C ITU DWDM 12-62 dans un seul port OTDR
18 canaux CWDM couverts dans un seul port OTDR évolutif en fonction de vos déploiements
Caractérisation intelligente de la fibre sans précédent avec iOLM
Testez à travers MUX/DEMUX/OADM
Test en service des réseaux actifs
Haute résolution et zones mortes réduites
Liste de canaux préférés
Dépannage iOLM's SFP-Safe : garantit qu'aucun dommage ne sera causé aux SFP

Applications

C-RAN
PHY distant
Alimentation d'antennes CBH
Liaisons Ethernet métropolitaines CWDM et DWDM

Specifications

Spécifications techniques
Calibrated wavelengths 1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1570/1590/1610
Dynamic range (dB) 37 dB (model CWDM), 40 dB (model DWC)
Exchange compatibility
iOLM-ready
Product type Module
Test Type Fault location/Fiber characterization/Fiber length/Loss/ORL
Fiche technique

Description

This series includes one CWDM tunable OTDR module to cover all 18 CWDM channels from a single port and one DWDM tunable OTDR module to cover DWDM C-Band channels. This solution is available in the FTB-1V2, FTB-2 and FTB-4 platforms.

The 740C xWDM OTDR series has been designed with EXFO’s renowned high-quality standards to stabilize central wavelength under test, preventing any drift/leakage into adjacent channels, which would otherwise affect other valuable customers.

This OTDR is a scalable solution that can grow with your network by adding channels further down the road, hence allowing CAPEX reduction while covering your current and future needs.

The OTDR’s user-friendly interface lets the technician define a list of favorite channels over the C-Band (DWDM) or CWDM grid (CWDM) for quicker access and a more efficient test routine.

CWDM and DWDM: the answer to future bandwidth growth

CWDM and DWDM are gaining popularity for passive C-RAN or commercial services deployments such as fiber deep, Remote PHY and metro Ethernet in which each wavelength can address a specific site, such as a cell tower. Both CWDM and DWDM approaches are not mutually exclusive and co-exist in hybrid passive networks that feature DWDM over CWDM to maximize fiber capacity.

Use a xWDM tunable OTDR for:

  • Single-ended CWDM/DWDM fiber characterization
  • Validating the continuity and end-to-end loss through MUX, OADM and DEMUX, during construction
  • In-service testing using the client’s wavelengths port—without any downtime or impacting other client wavelengths
  • Troubleshooting and characterization by a single operator from the head-end
