FTBx-9160 - Commutateur optique MEMS

Assure une commutation fibre à fibre très précise et reproductible

Caractéristiques principales

Monomode 1xN jusqu'à 1x32

Temps de commutation rapide de ≤30 ms

Durée de vie supérieure à 1x109 cycles

Diverses options de connecteurs

Specifications

Spécifications techniques
Type de produit	Module

Fiche technique

Description

Designed for manufacturing

EXFO’s FTBx-9160 switches deliver excellent performance in a compact modular format. The 1xN models are MEMS based while the 2x2 switches are latest generation opto-mechanical design. Both 1xN and 2x2 are fast (<30 ms) and repeatable with an extended lifetime expectancy. This is the perfect optical switch for demanding manufacturing applications in a 24/7 operating cycle.

Multiple configurations available

Singlemode models – 1x2, 1x4, 1x8, 1x12, 1x16, 1x24, 1x32 and 2x2 configurations are supported
Multimode models – 1x2, 1x4, 1x8, 1x12, and 2x2 configurations are supported
Polarization Maintaining models – 1x2, 1x4, 1x8, 1x12, and 2x2 configurations are supported

A multitude of applications

Optical switches are critical building blocks integrated in almost every test station. The FTBx-9160 is the perfect switch to support a wide variety of applications with all common fiber types, whether SMF, MMF or PMF. Use the FTBx-9160 switch to:

Share test instruments, such as an optical spectrum analyzer, a bit-error-rate tester, communication analyzer or many others.
Build complex, reconfigurable R&D or manufacturing test stations
Test multiple devices in parallel, or perform multiple tests on a single device
Perform automated bi-directional testing with the 2x2 configuration
Any other application that requires reliable fiber-to-fiber switching

Multiple Platforms to choose from

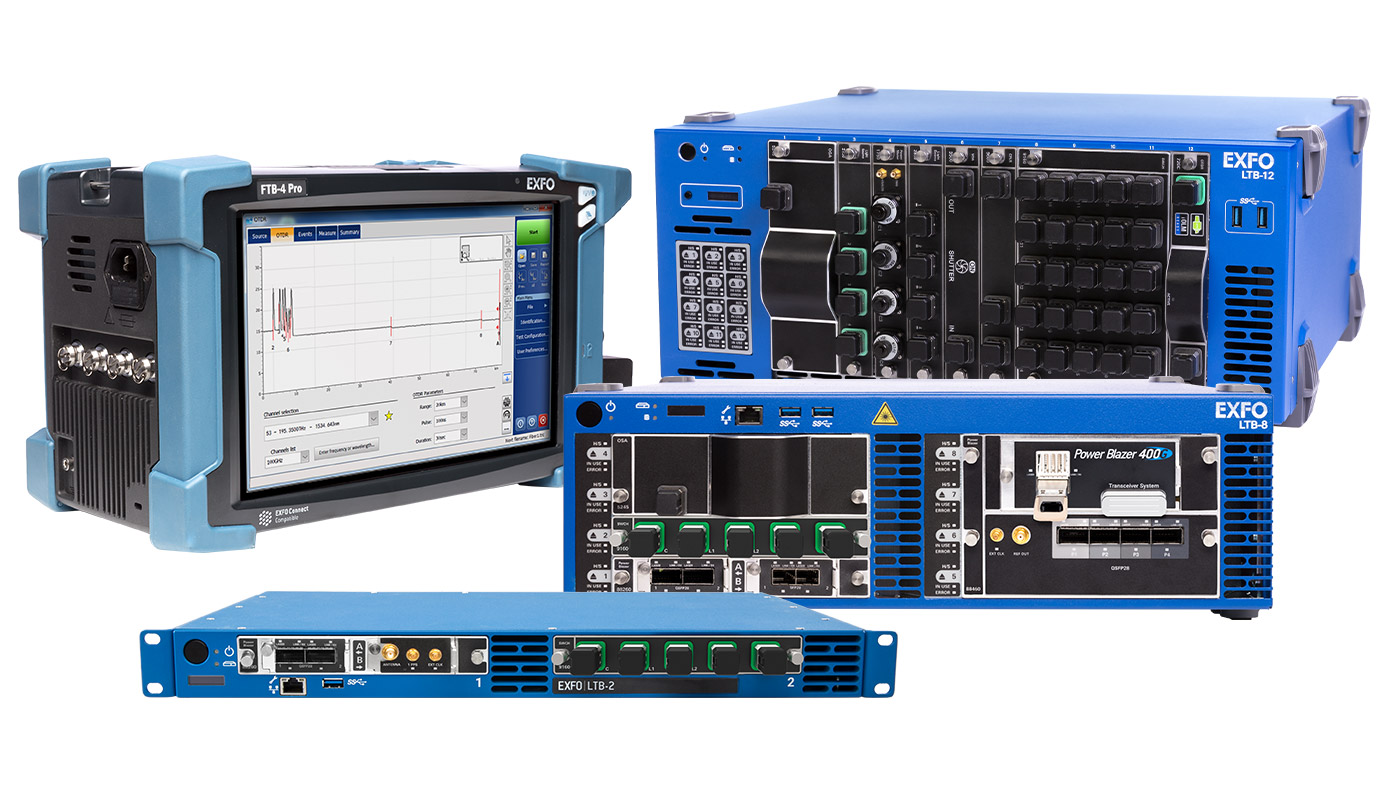

You can select either the LTB-2 (1U), the LTB-8 (3U) or the lTB-12 (4U) platform for your application. Within all these platforms, the FTBx-9160 can be easily automated via ethernet or GPIB interface using SPCI commands, IVI drivers, or REST APIs. Software development kits (SDKs) are available.

Try it out

Try this Live demo to see the convenient WEB GUI for the FTBx-9160 along with other instruments. The following diagram illustrates the optical connections for this live demonstration using a light source, switch, variable optical attenuator and a 4 channel pptical power meter.
