LTB-2 - ordinateur central modulaire à montage en rack

Le LTB-2 est une plate-forme modulaire puissante et évolutive à deux emplacements, conçue pour les tests multiservices dans les bureaux centraux et les laboratoires.

Caractéristiques principales

Flexible, évolutif et modulaire : Solution modulaire compacte 1U pour les applications en rack ou sur table. Elle permet de tester les protocoles de transport et de télécommunications et de tester simultanément jusqu'à 4 x 100G
Remplaçable à chaud : Capacité de remplacement à chaud des modules intelligents, permettant une transition rapide d'une plate-forme à l'autre, ou d'une plate-forme de montage en rack à une plate-forme portable, sans mise hors tension
Conception d'un ordinateur de qualité industrielle : Conception simple, facile à utiliser, avec un processeur quadricœur et le système d'exploitation Microsoft Windows
Gestion hors bande : Accès à distance optimal pour la maintenance ou la configuration initiale grâce à la technologie Intel® Active Management Technology (AMT)
Connectivité : USB 3.0, LAN, Sync et port AMT pour un maximum d'options de connectivité
Accessibilité : Possibilité d'accès à distance via VNC ou Remote Desktop. Des outils tiers peuvent être facilement installés pour une gamme polyvalente d'applications

Applications

Tests multiservices en laboratoire
Le bureau central réarchitecturé en centre de données (CORD)
Tête de réseau réarchitecturée en centre de données (HERD)
Interconnexion de centres de données (DCI)

Description

Recognized as a best-in-class platform, the LTB-2 is a versatile solution addressing numerous transport and datacom applications. Whether in the central office/exchange, design lab or during the manufacturing process, the LTB-2 provides users with added testing versatility and power to take on the today’s complex challenges.

The Windows advantage

Keep it simple and use mainstream applications such as Microsoft Office Suite (i.e., Word, Excel and PowerPoint) and other familiar programs.
  • Faster start times and multitasking for a superior user experience
  • Familiar desktop design for ease of use
  • Connect remotely with Microsoft Remote Desktop and EXFO’s remote toolbox

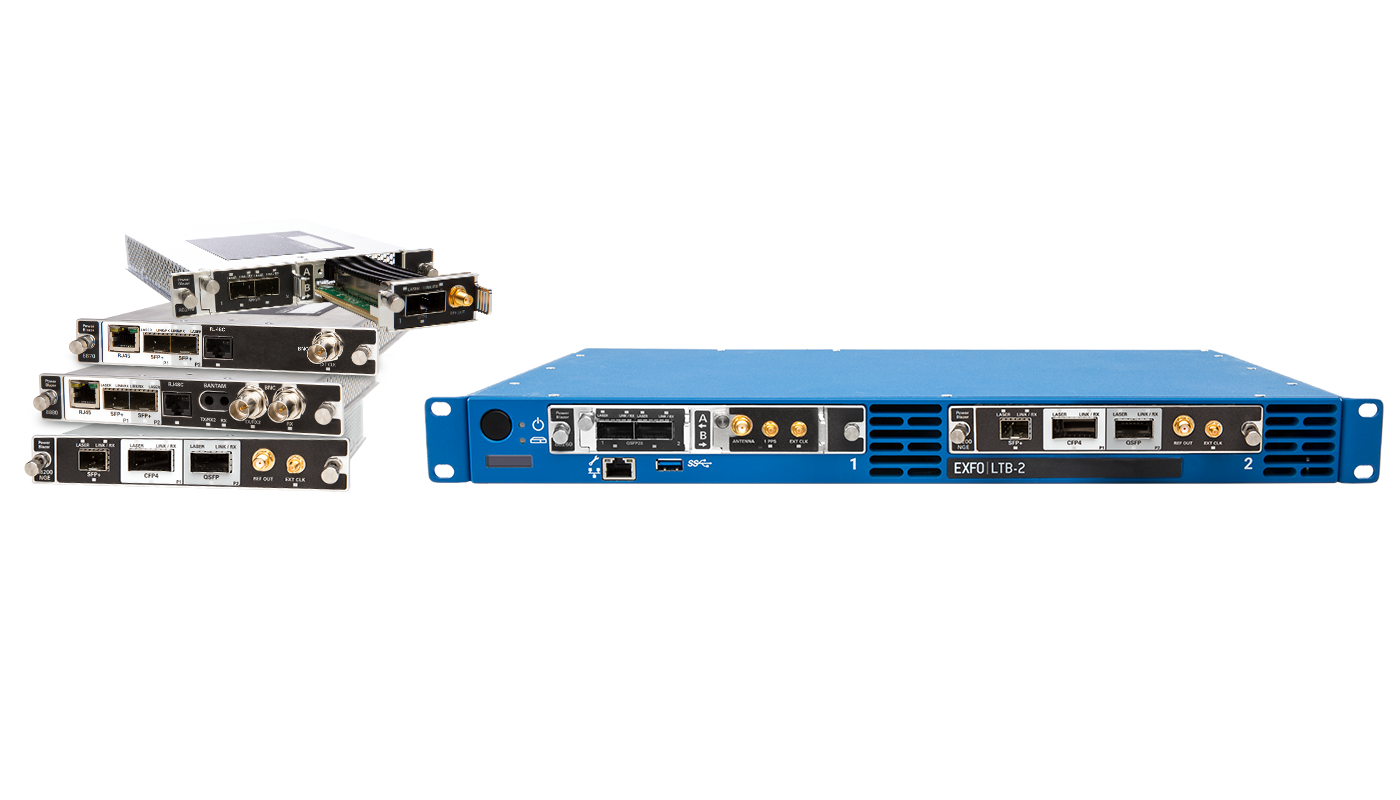

Supports transport and datacom multiservice test modules

The FTBx-88260 is a customizable 1G-to-100G multiservice test module, built to handle multiple transceiver types via EXFO’s unique Open Transceiver System (OTS).

Key features:
  • Supported interfaces: copper SFP/SFP+, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP4 and AOC cables
  • Ethernet testing including RFC 6349 and EXFO’s iSAM for 100G testing
  • 5G support CPRI/eCPRI, including eCPRI 10G and 25G

The FTBx-8870/8880 Power Blazer are versatile, 10G multiservice test modules.

Key features:
  • Dual-port, Ethernet-testing capability—up to 10GE
  • Testing of speeds from 1.5M to 10G
  • Covering multiple technologies: OTN, SONET/SDH, DSn/PDH, Ethernet, Fibre Channel and CPRI

Remote monitoring and control

Use remote access applications such as Java, VNC, remote desktop or web browsers to monitor and troubleshoot test applications carried out on an LTB-2 platform found anywhere.

Get connected and share resources

EXFO TFv—Test Function Virtualization is the industry’s first suite that focuses on test function virtualization. This suite is ideal for lab managers who are looking to scale their testing requirements to specific user needs.
  • FTB Anywhere floating test licenses enable EXFO’s platform users to share licenses, giving them the functionality that they need anytime, anywhere. Customers own the software licenses and can share them between platforms.
  • FTB OnDemand time-based licenses activate a wide range of test functionalities for a specific period of time—perfect when a test function is only needed for a specific project.

Jusqu'à 4 tests 100G dans un boîtier 1U

Conçu pour les tests multiservices dans les laboratoires, les CORD, les HERD et les environnements DCI, le LTB-2 est une plateforme modulaire puissante et évolutive à deux emplacements pour montage en rack.
