BA-4000 Bit Analyzer - 800G电误码率分析仪

支持FEC余量(FEC margin)计算的误码率分析仪。

主要优点

支持100G(4x28 GBd)、400G(8x56 GBd)和800G(8x56GBd)速率
支持NRZ和PAM4编码
支持PRBS 7/9/11/13/15/23/31/13Q/31Q和SSPRQ码型
FEC功能:生成RS-FEC Scrambled Idle码型,以测试53 GBd host侧接口
通道模拟
插入突发/随机的错误
支持线性/格雷码映射
O-SMPM连接

应用

光模块测试与验证
TOSA和ROSA等组件测试
FPGA、MCB和HCB测试

描述

Bit error rate (BER) is a key performance attribute for digital communications. The signal transmission quality of a network, subsystem or component, can be evaluated using a BER tester, which compares the data stream received to the transmitted sequence and computes the number of errors.

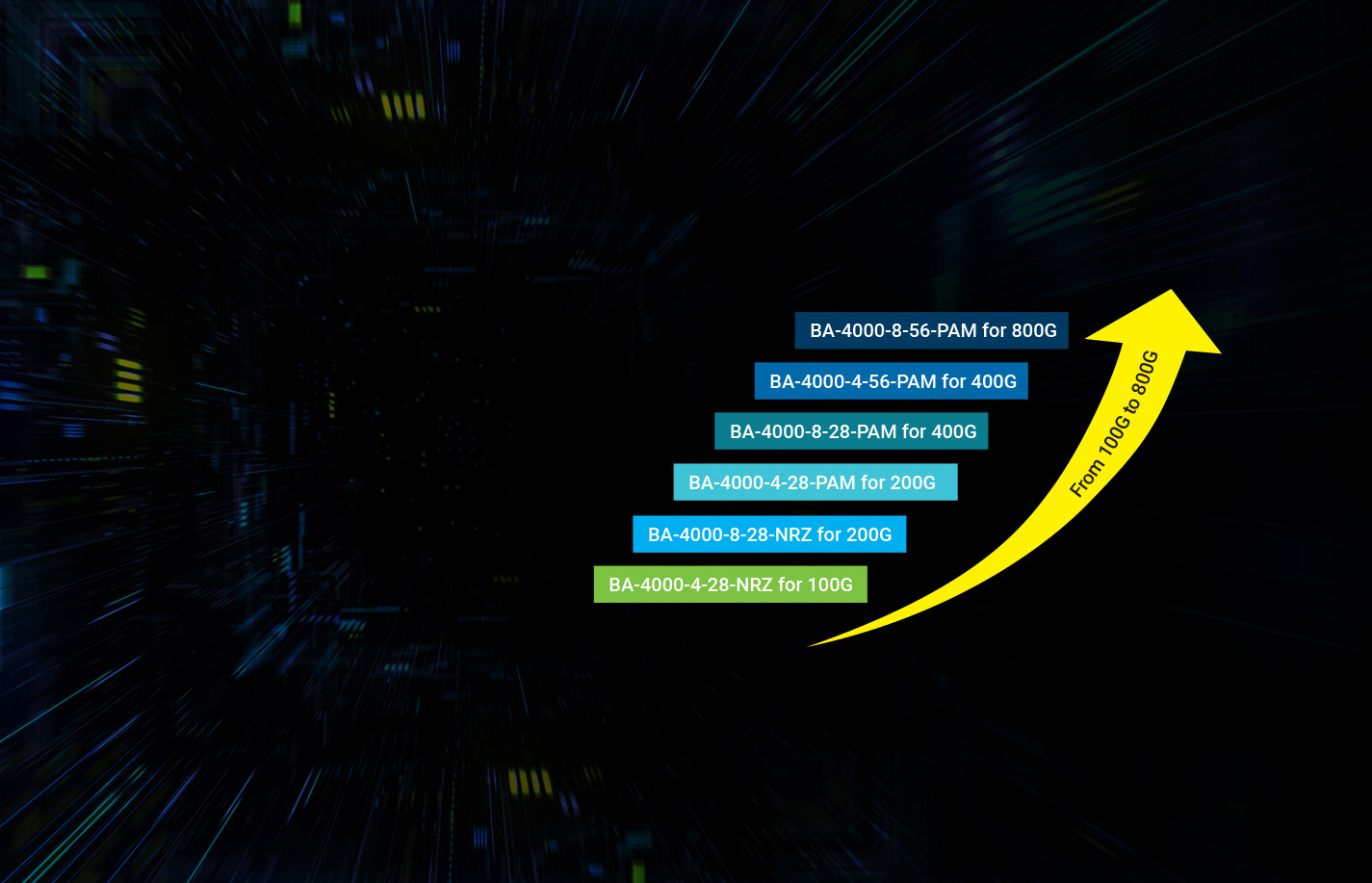

The BA-4000 Bit Analyzer is an electrical NRZ/PAM4 BER tester designed for the production floor. It comes in six models:

  • BA-4000-4-28-NRZ: 100G BERT including 4-channel NRZ 28 Gbit/s.
  • BA-4000-8-28-NRZ: 200G BERT including 8-channel NRZ 28 Gbit/s.
  • BA-4000-4-28-PAM: 100G/200G BERT enabling either 4-channel NRZ 28 Gbit/s or 4-channel PAM4 28 GBd.
  • BA-4000-4-56-PAM: 200G/400G BERT enabling either 4-channel NRZ 56 Gbit/s or 4-channel PAM4 56 GBd.
  • BA-4000-8-28-PAM: 200G/400G BERT suitable for either 8-channel NRZ 28 Gbit/s or 8-channel PAM4 28 GBd.
  • BA-4000-8-56-PAM: 400G/800G BERT suitable for either 8-channel NRZ 56 Gbit/s or 8-channel PAM4 56 GBd.


The BA-4000 Bit Analyzer leverages FEC simulation capabilities to provide powerful analysis for burst error. Some of the main FEC features are:

  • PRBS error check and correction
  • Pre-FEC and Post-FEC BER
  • KP4/KR4 and low latency FEC protocols
  • FEC Generator and Checker (FGC) to address RS-FEC Scrambled Idle Pattern
  • FEC symbol error distribution plot: codewords vs symbols errors
  • FEC margin auto-calculation
