FTBx-5245 5255 Field - Optical spectrum analyzers for the field

Resumen

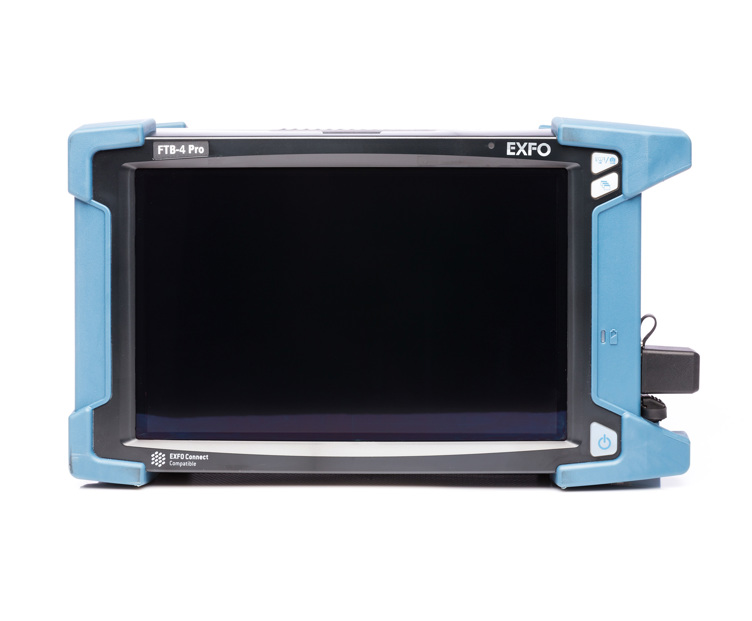

In addition to delivering all the tools needed for maximum field efficiency, the FTBx-5245/5255 provides improved reliability, accuracy and speed of test. Compatible with FTB-2 Pro, FTB-4 Pro and LTB-8 platform.
FTBx-5245 5255 Field - Optical spectrum analyzers for the field

Características principales

  • Robust In-service Pol-Mux OSNR for 100G/200G/400G (FTBx-5255)
  • Industry’s only all-in-one OSA covering all applications: high speed (100G+ In-service OSNR, etc.), CWDM, O and L-band testing, etc.
  • Portable solution for spectral characterization of DWDM/CWDM networks
  • Industry’s smallest OSA/transport solution in a single platform (FTB-4 Pro)
  • Pol-Mux OSNR option compliant with IEC 61282-12 standard
  • Large 10-inch display screen on the FTB-2 and FTB-4 Pro platforms

Aplicaciones

  • Spectral Analysis
  • OSNR
  • xWDM networks

Especificaciones

Technical specifications
Wavelength range (nm)FTBx-5245: 1250 to 1650; FTBx-5255: 1250 to 1650
Wavelength uncertainty (nm)FTBx-5245: ±0.05b, ±0.01b, c, d; FTBx-5255: ±0.025b, ±0.010b, c, d
ReferenceFTBx-5245: Internale; FTBx-5255: Internale
Resolution bandwidth (RBW) (nm)fFTBx-5245: 0.065d, g; FTBx-5255: 0.035b, d, <0.02 (high resolution mode)b, d, h
Wavelength linearity (nm)FTBx-5245: ±0.01d, i; FTBx-5255: ±0.01d, i
Wavelength repeatability 2σ (nm)FTBx-5245: ±0.003j; FTBx-5255: ±0.003j
Analysis modeFTBx-5245 and FTBx-5255: WDM, EDFA, drift, spectral transmittance, DFB, FP
Optical rejection ratio (dB)m
at 0.2 nm (25 GHz)
at 0.4 nm (50 GHz)		 FTBx-5245: 35 (40 typical) at 0.2 nm; 45 (50 typical) at 0.4 nm
FTBx-5255 / HPW option: 45 (50 typical) at 0.2 nm; 50 (55 typical) at 0.4 nm
Channel spacingFTBx-5245: 25 to 200 GHz, CWDM; FTBx-5255: 12.5 to 200 GHz, CWDM
PDL (dB)mFTBx-5245: ±0.08d; FTBx-5255: ±0.06d; HPW option: ±0.1d
ORL (dB)FTBx-5245: ≥40; FTBx-5255: ≥40
Measurement time (s) (includes scanning, analysis and display)FTBx-5245 and FTBx-5255: <1.0d, n
Dynamic range (dBm) (per channel)bFTBx-5245: –80k to 18; FTBx-5255: –80k to 18; HPW option: –75k to 23
Maximum total safe power (dBm)FTBx-5245: 23; FTBx-5255: 23; HPW option: 29
Absolute power uncertainty (dB)FTBx-5245: ±0.5l; FTBx-5255: ±0.5l; HPW option: ±0.5l
Power repeatability 2σ (dB)FTBx-5245: ±0.02j; FTBx-5255: ±0.02j; HPW option: ±0.02j
In-band OSNR measurementdAvailable on FTBx-5245-P only and FTBx-5255
OSNR dynamic range (dB)FTBx-5245-P only: >35o; FTBx-5255: >35o
OSNR measurement uncertainty (dB)FTBx-5245-P only: ±0.5p; FTBx-5255: ±0.5p
OSNR repeatability (dB)FTBx-5245-P only: ±0.2q; FTBx-5255: ±0.2q
Data signals (in-band OSNR)FTBx-5245-P only: Up to 100 Gbit/sr; FTBx-5255: Up to 100 Gbit/sr
Pol-Mux OSNR measurementCommissioning assistant
Modulation formats (Pol-Mux OSNR)Any, including all coherent/Pol-Mux formats like DP-QPSK, DP-BPSK, DP-8-QAM, DP-16-QAM, DP-64-QAM
Data signals (Pol-Mux OSNR)Up to 400 Gbit/s
Measurement time (Pol-Mux OSNR)1 min and 40 s (100 scans) for trace with all channels ona, b; <5 s for traces with a single channel off
In-service Pol-Mux OSNRa, cAvailable on FTBx-5255
OSNR dynamic range (dB) (in-service Pol-Mux)FTBx-5255: 30
OSNR measurement uncertainty (dB) (in-service Pol-Mux)FTBx-5255: ±0.5d, e, f
Repeatability (dB) (in-service Pol-Mux)FTBx-5255: ±0.3d, e
a. All specifications are for a temperature of 23 °C ± 2 °C with an FC connector, unless otherwise specified, after warm-up. Measurements taken using FTB-4 Pro.
b. From 1520 to 1610 nm.
c. After user calibration in the same test session, within 10 nm from user calibration wavelength.
d. Typical.
e. Integrated and wavelength independent.
f. Full-width half-maximum.
g. From 1300 to 1590 nm.
h. Optimized for higher order modulation format signals.
i. From 1530 to 1570 nm.
j. At 1550 nm, in drift mode. Single scan every 2 seconds, over 2 minutes. With DFB laser.
k. With averaging.
l. At 1550 nm, –10 dBm input.
m. At 1550 nm, with narrow monochromatic light source.
n. 45 nm span, full resolution, 20 peak. On FTB-2 Pro.
o. For an optical noise level of > –55 dBm, > –49 dBm for HPW models.
p. With PMD ≤15 ps and no crosstalk, uncertainty specification is valid for OSNR ≤ 25 dB. With PMD ≤ 15 ps and crosstalk, uncertainty specification is valid for OSNR ≤ 20 dB.
q. Valid for OSNR ≤ 25 dB.
r. Except for polarization-multiplexed and fast polarization-scrambled signals.
a. Typical.
b. 1525 nm to 1570 scan. On the FTB-4 Pro platform.
c. For an optical noise level of > –55 dBm in 0.1 nm RBW.
d. For signal rates < 35 Gbaud/s on grid spacing ≥ 50 GHz (with or without spectral shaping).
e. Up to 25 dB of OSNR.
f. Up to ±1.5 dB when there is the presence of combined typical network variations in nonlinear effects, relative signal or filter wavelength drifts.
General specifications
Size (H x W x D)51 mm x 159 mm x 185 mm (2 in x 6 1/4 in x 7 5/16 in)
Weight1.2 kg (2.6 lb)
Temperature, operating0 °C to 40 °C (32 °F to 104 °F)
Temperature, storage–40 °C to 50 °C (–40 °F to 122 °F)
Relative humidity0 % to 95 % noncondensing
ConnectorsEI (EXFO UPC universal interface); EA (EXFO APC universal interface)
a. Typical.
