PXM/LXM - Duplex and multi-fiber OLTS

Resumen

Tier-1 certification kit with power meter and light source, compatible with multiple duplex and multi-fiber connectors up to 24 fibers. Measures loss, length, and polarity in just 1 second, as per certification standards.

Características principales

Duplex and multi-fiber (up to 24 native) testing at 2 wavelengths in just 1 second
Patented Click-Out adapters compatible with duplex MDC, SN, LC and multi-fiber MMC, MPO, and SYSTIMAX MTP
Complies with one-cord reference method
PXM power meter with contactless connector
Polarity type, insertion loss and length live measurement results combined on one page
In-line visual fault locator (VFL) for fiber tracing on LXM

Duplex and multi-fiber (up to 24 native) testing at 2 wavelengths in just 1 second

Patented Click-Out adapters compatible with duplex MDC, SN, LC and multi-fiber MMC, MPO, and SYSTIMAX MTP

Complies with one-cord reference method

PXM power meter with contactless connector

Polarity type, insertion loss and length live measurement results combined on one page

In-line visual fault locator (VFL) for fiber tracing on LXM

Aplicaciones

Central offices
Headends
Intra data center

Central offices

Headends

Intra data center

Especificaciones

Especificaciones
Automatización	Yes
Compatibilidad con EXFO Exchange	Sí
Intervalo mensual de recalibración	36
Longitudes de onda calibradas	850 / 1300 / 1310 / 1550
Multiple wavelength measuring	Sí
Tipo de conector de fibra	MMC / MPO / LC / MDC / SN
Tipo de fibra	Singlemode / Multimode (upcoming P24 model)
Tipo de medición	Insertion loss / Lenght / Polarity
Tipo de producto	Handheld
Tone detection	Sí
Visual Fault Locator (VFL)	Sí

Hojas de especificaciones

Aspectos destacados

Test faster. Test more.

Native duplex and multifiber (up to 24 fibers) testing dual wavelength in just 1 second, using a single test cord and automated workflows.

Built-in features that make testing more intuitive and efficient:

Large, hybrid contactless connector: PXM accommodates both APC and UPC connectors to support multimode and singlemode link testing. Large core detector allows the PXM to give precise measurements with low uncertainty.
Generate reports with FastReporter: PXM power meter measurements for power or loss can be processed directly by FastReporter.
Smartphone-grade touchscreen: PXM and LXM have integrated high‑quality capacitive color touchscreens designed to be visible in full sun or dark areas, from any angle.

Switch between duplex and multi-fiber while ensuring standards compliance

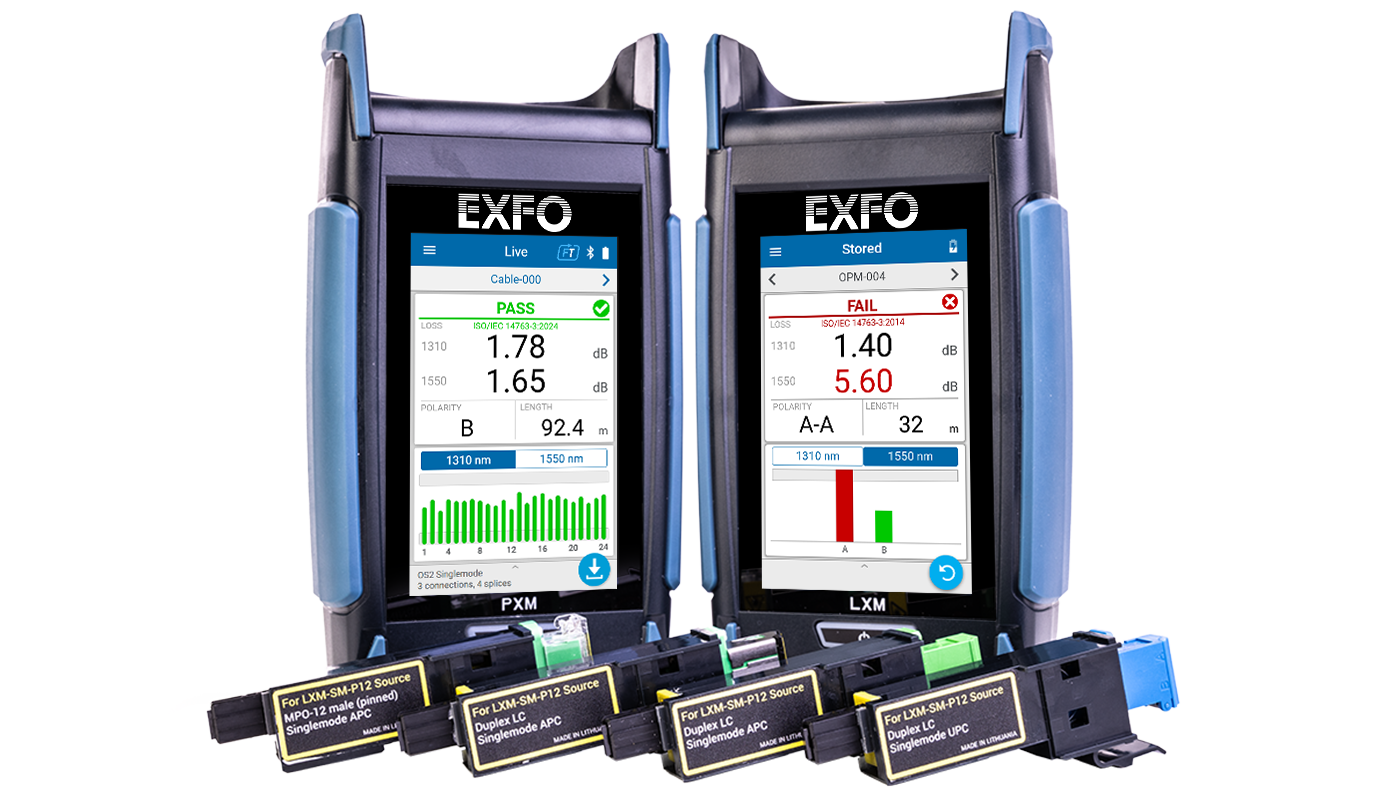

EXFO’s patented Click-Out adapters allow quick, tool-free switching between duplex and multi-fiber testing. They support a wide range of connector types, including duplex MDC, SN, LC, as well as-MMC, MPO, and SYSTIMAX MTP.

Enabling simplified one-cord referencing for standards-compliant certification, it delivers fast, versatile, and reliable testing for high-density fiber networks.
