FOT-5205 - DWDM通道分析仪

手持式通道分析仪，用于监测CWDM通道并测量其功率

规格书用户手册

主要优点

手持式通道分析仪，支持50 GHz和100 GHz DWDM间隔

有线运营商的理想工具

光谱范围涵盖所有Remote PHY波长

可检测低功率信号，特别适用于通过监测端口进行测量

测量速度极快

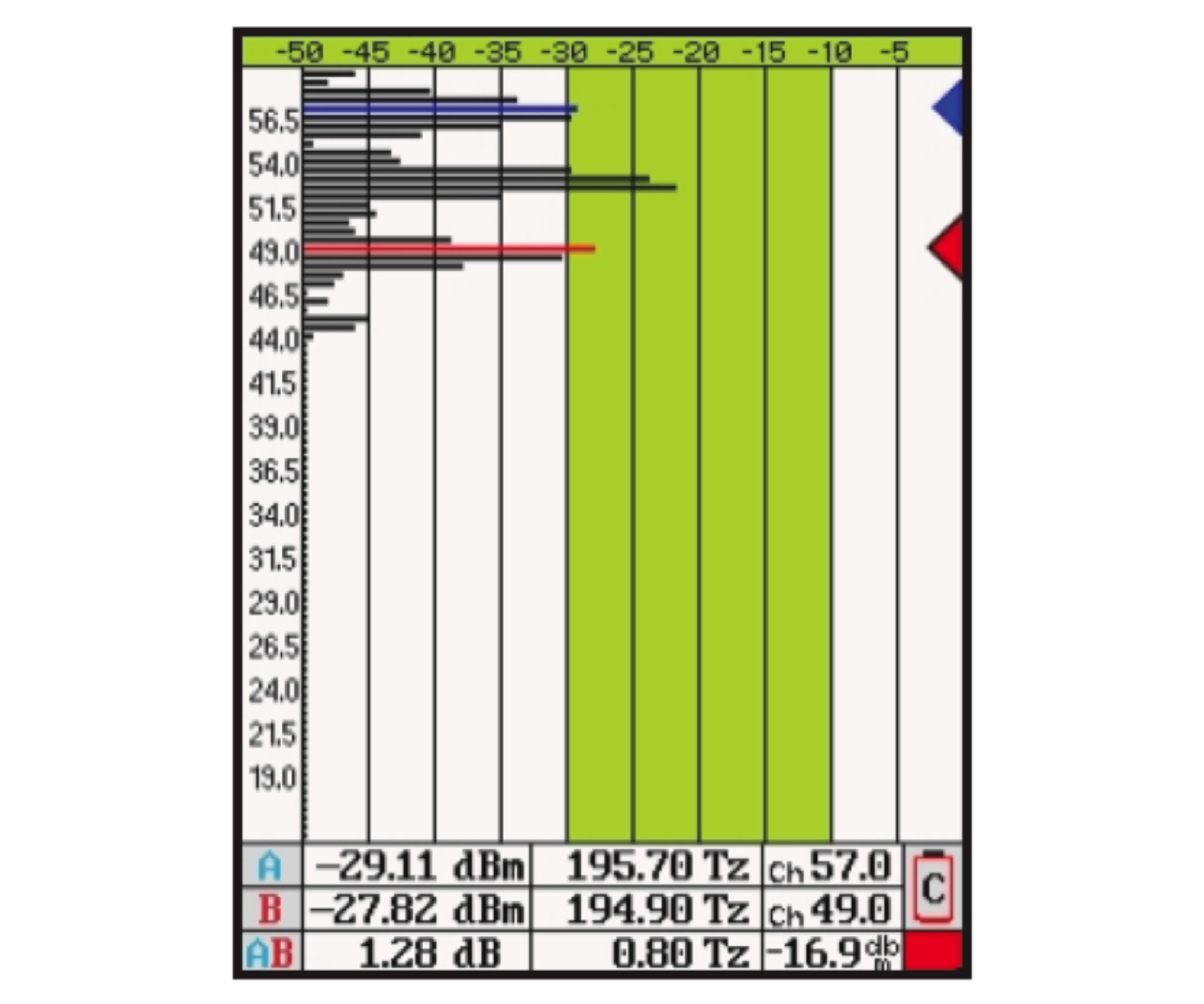

以条形图和图表显示结果，提供通过/未通过阈值并采用坚固耐用的设计

规格

技术规格
Deployment	Field
Exchange compatibility
Product type	Handheld
Test Type	Optical power/Wavelength measurement

规格书

描述

Deploying Remote PHY? Meet your new best friend.

For cable operators, Remote PHY is the next major network architecture change. This new technology brings fiber much deeper into the network—and much closer to the end user. Remote PHY also triggers the evolution from analog optics to digital optics, featuring Dense Wavelength Division Multiplexing (DWDM) for increased capacity.

The FOT-5205 meets the testing needs of Remote PHY deployments in terms of spectral range, power range and channel spacing. It is the ideal tool for successful network commissioning and effective troubleshooting.

Extremely fast measurement time

EXFO understands that field technicians want to get the job done the first time—and quickly. The FOT-5205 boasts a measurement time of less than 0.5 seconds, one of the fastest in the industry.

Unparalleled testing capabilities

Unlike some competing products, EXFO’s FOT-5205 is sensitive enough to detect low power signals, down to -50 dBm. This feature is especially important when measuring through monitor ports because these reduce the signal power by approximately 20 dB.
