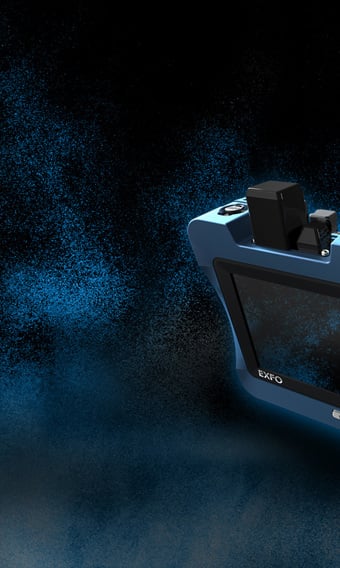

MaxTester 720D - 接入网OTDR

功能齐全的入门级专用 OTDR,采用平板式设计;针对多模和单模接入网络测试进行了优化。

主要优点

结实耐用、轻巧便携,借鉴平板电脑设计,专用于室外环境
7英寸室外增强型触摸屏——在手持式测试仪中屏幕尺寸最大
续航时间长达12小时
单模时动态范围高达36 dB,多模时高达29 dB
结合可选的GPON/XGS-PON功率计,以1650 nm波长进行不中断服务的FTTx测试
采用可替换连接器,可在必要时替换,从而确保长时间地保持出色的性能,避免造成不必要的维修成本和停机
支持iOLM(光眼):只需单键操作,便可开始多个数据采集过程,并以易懂的图表显示通过/未通过结果
提供3年保修
通过单端口连接 OTDR、光源和功率检查器,优化光纤处理过程

应用

接入网工程建设和排障
通过分光器(最高可达1x32)进行FTTx/PON测试
FTTx服务开通:GPON、EPON、XGS-PON、10GE EPON
机房(CO)链路验证
数据中心和专网(Tier-2验证)
专网/企业网Tier-2验证
LAN/WAN鉴定
前传/回传(FTTA、FTTT、RRH、DAS和小基站)

规格

技术规格
Calibrated wavelengths 850/1300/1310/1550/1650
Dynamic range (dB) 36 dB in singlemode (SM), 29 dB in multimode (MM)
Exchange compatibility
iOLM-ready
Product type Handheld
规格书

描述

The handheld OTDR... with proven perfomance

The MaxTester 700D Series builds on the proven tablet-inspired, lightweight and rugged OTDR MaxTester platform. The familiar 7-inch, outdoor-enhanced touchscreen continues to deliver an unprecedented user experience with its intuitive Windows-like GUI ensures a fast learning curve. The OTDR 2 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real‑time modes.

The MaxTester 700D Series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time.

The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier.

Most importantly, the MaxTester 700D Series comes with the intelligent Optical Link Mapper (iOLM), an intelligent OTDR‑based application. This advanced software turns even the most complex trace analysis into a simple, one-touch task.

Ultimately, the MaxTester 700D Series is small enough to fit in your hand and big enough to fit all your needs!

Entry-level solution designed for all your testing needs

The MaxTester 720D (MAX-720D) features a dynamic range of 36 dB in singlemode and 29 dB in multimode, as well as industry‑leading dead zones. This ensures efficient testing of closely spaced events such as patchcords in data centers, or patch panels in central offices (COs). The MaxTester 720D is optimized for point-to-point (P2P) testing of any access network, and is suitable for testing through 1×32 splitters.

The 1650-nm, out-of-band, live testing capabilities enable efficient troubleshooting of active networks without impacting the signal of other clients.

Swap-Out(可替换)连接器

MaxTester 700D OTDR系列采用可替换连接器,您可以根据需要在现场轻松替换,而不必将OTDR送回服务中心进行维修或校准。这可以确保OTDR长时间保持出色的性能,避免不必要的维修成本和停机。可以通过OTDR自带的诊断工具查看光纤连接器的状况,只在必要的时候替换连接器。

即使更换了连接器,校准日期仍然有效。无需提前校准设备。

您知道吗?

在将UPC线缆连接到OTDR上的APC端口时,OTDR连接器是否被损坏?如果是,现在已不再需要将OTDR送回维修,从而避免造成停机。得益于EXFO的可替换连接器,您可以即刻检查连接器的状况,如果需要,可以在几秒钟内直接在现场完成替换!
