PXM/LXM - Duplex and multi-fiber OLTS

概述
Tier-1 certification kit with power meter and light source, compatible with multiple duplex and multi-fiber connectors up to 24 fibers. Measures loss, length, and polarity in just 1 second, as per certification standards.

主要优点

  • Duplex and multi-fiber (up to 24 native) testing at 2 wavelengths in just 1 second
  • Patented Click-Out adapters compatible with duplex MDC, SN, LC and multi-fiber MMC, MPO, and SYSTIMAX MTP
  • Complies with one-cord reference method
  • PXM power meter with contactless connector
  • Polarity type, insertion loss and length live measurement results combined on one page
  • In-line visual fault locator (VFL) for fiber tracing on LXM

应用

  • Central offices
  • Headends
  • Intra data center

规格

技术规格
测量类型 Insertion loss / Lenght / Polarity
产品类型 Handheld
光纤连接器类型 MMC / MPO / LC / MDC / SN
纤维类型 Singlemode / Multimode (upcoming P24 model)
校准波长 850 / 1300 / 1310 / 1550
与EXFO Exchange的兼容性 是的
重新校准月间隔 36
自动化 Yes
Multiple wavelength measuring 是的
Tone detection 是的
Visual Fault Locator (VFL) 是的
规格书

亮点

Test faster. Test more.

Native duplex and multifiber (up to 24 fibers) testing dual wavelength in just 1 second, using a single test cord and automated workflows.

Built-in features that make testing more intuitive and efficient:

  • Large, hybrid contactless connector: PXM accommodates both APC and UPC connectors to support multimode and singlemode link testing. Large core detector allows the PXM to give precise measurements with low uncertainty.
  • Generate reports with FastReporter: PXM power meter measurements for power or loss can be processed directly by FastReporter.
  • Smartphone-grade touchscreen: PXM and LXM have integrated high‑quality capacitive color touchscreens designed to be visible in full sun or dark areas, from any angle.

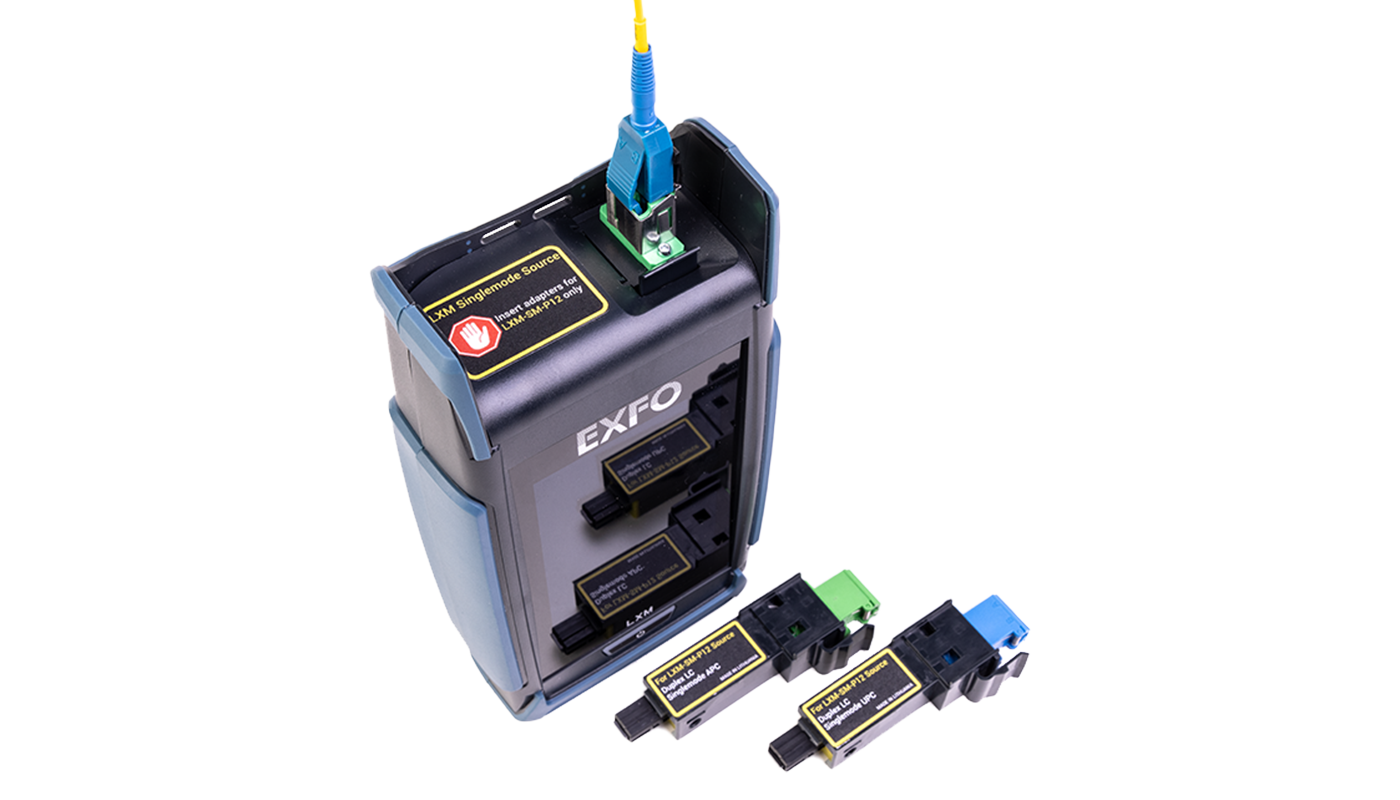

Switch between duplex and multi-fiber while ensuring standards compliance

EXFO’s patented Click-Out adapters allow quick, tool-free switching between duplex and multi-fiber testing. They support a wide range of connector types, including duplex MDC, SN, LC, as well as-MMC, MPO, and SYSTIMAX MTP.

Enabling simplified one-cord referencing for standards-compliant certification, it delivers fast, versatile, and reliable testing for high-density fiber networks.

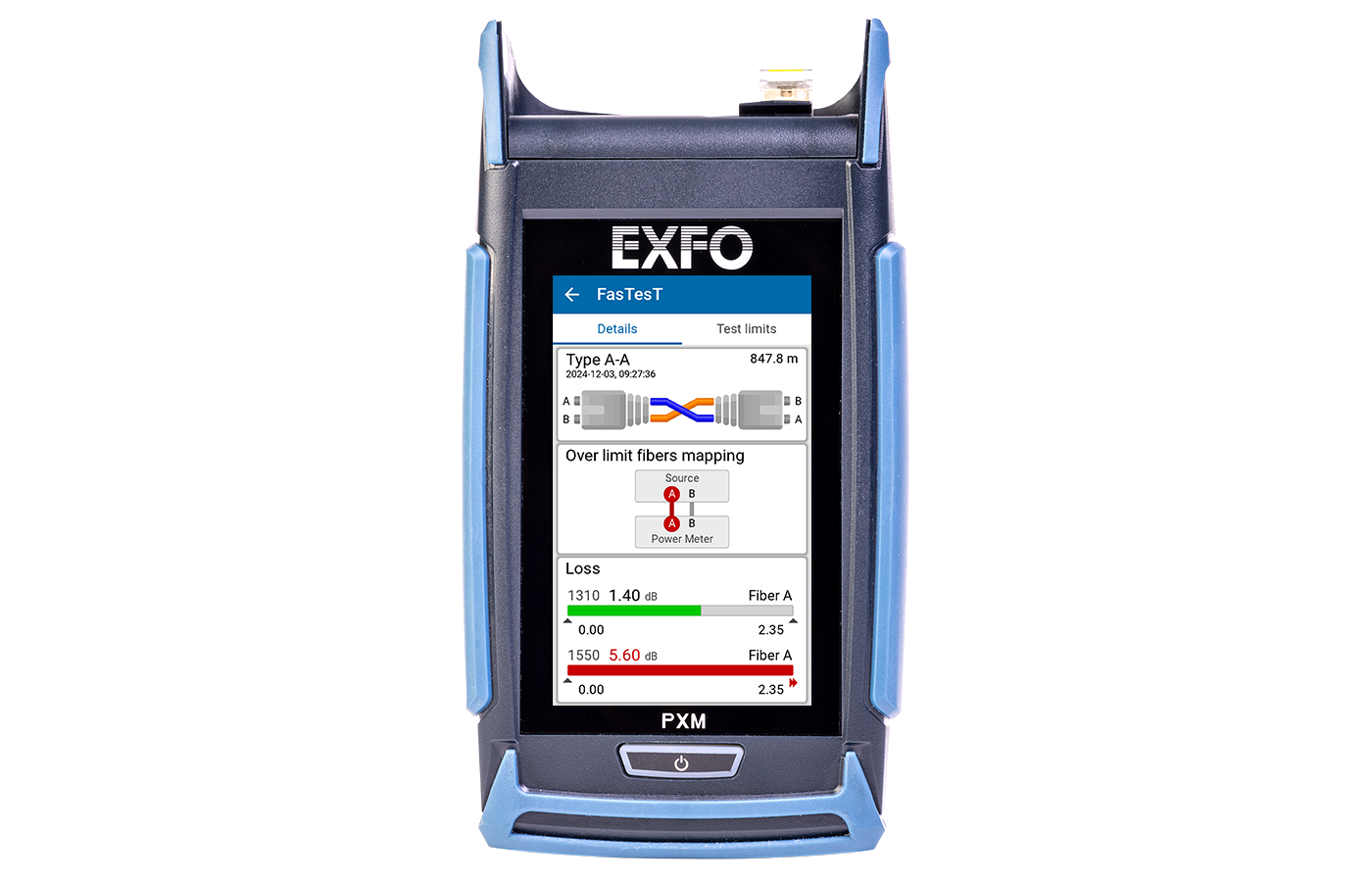

First-time-right polarity

Detect duplex and multi-fiber polarity issues hidden in trunk cabling—before the network goes live.

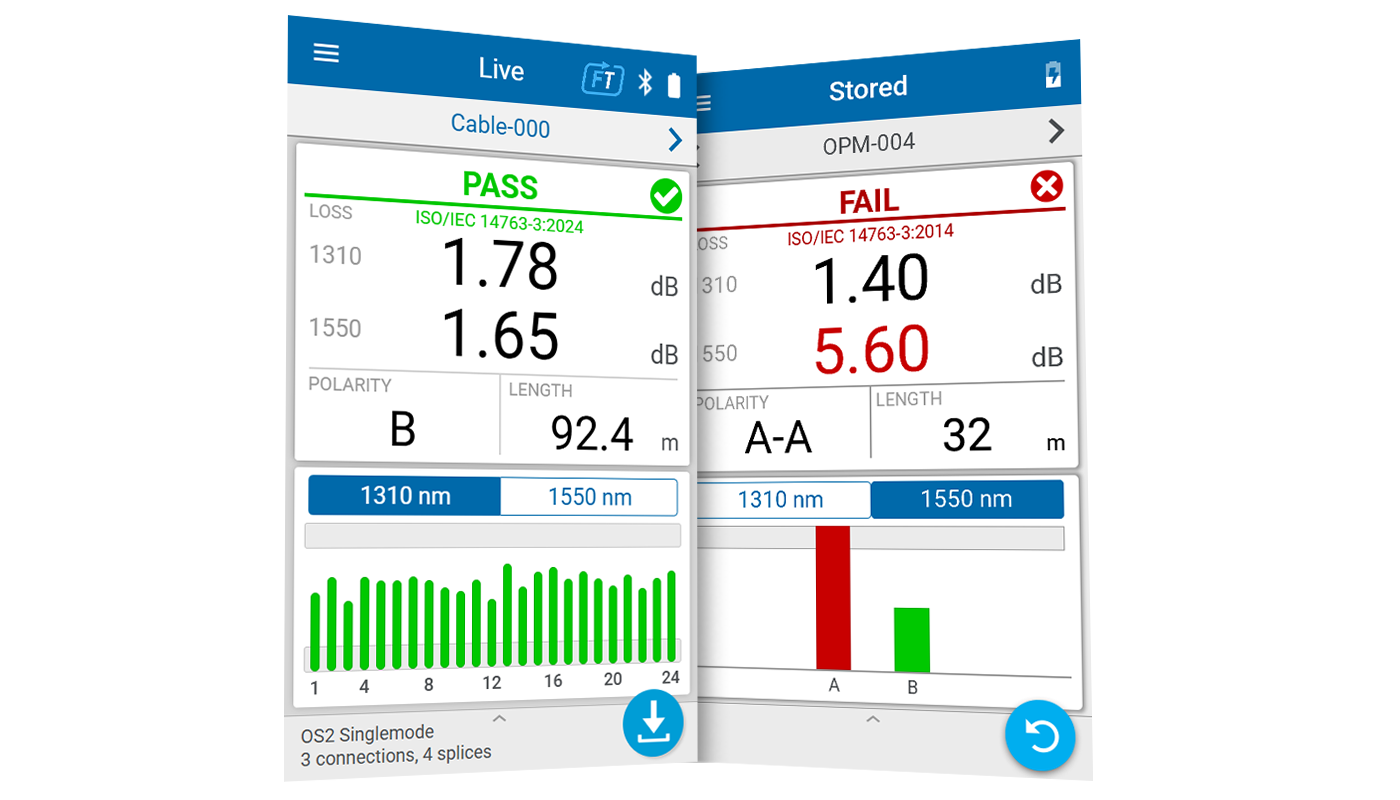

Duplex or multi-fiber pass/fail results all on one page

View the most important results together on one screen—complete jobs faster and transition to the next one with confidence.

  • Global pass/fail status and pass/fail per fiber with length measurement
  • Insertion loss per wavelength
  • Live simultaneous reading of all fibers for faster testing and troubleshooting
  • Polarity type with graphical representation
