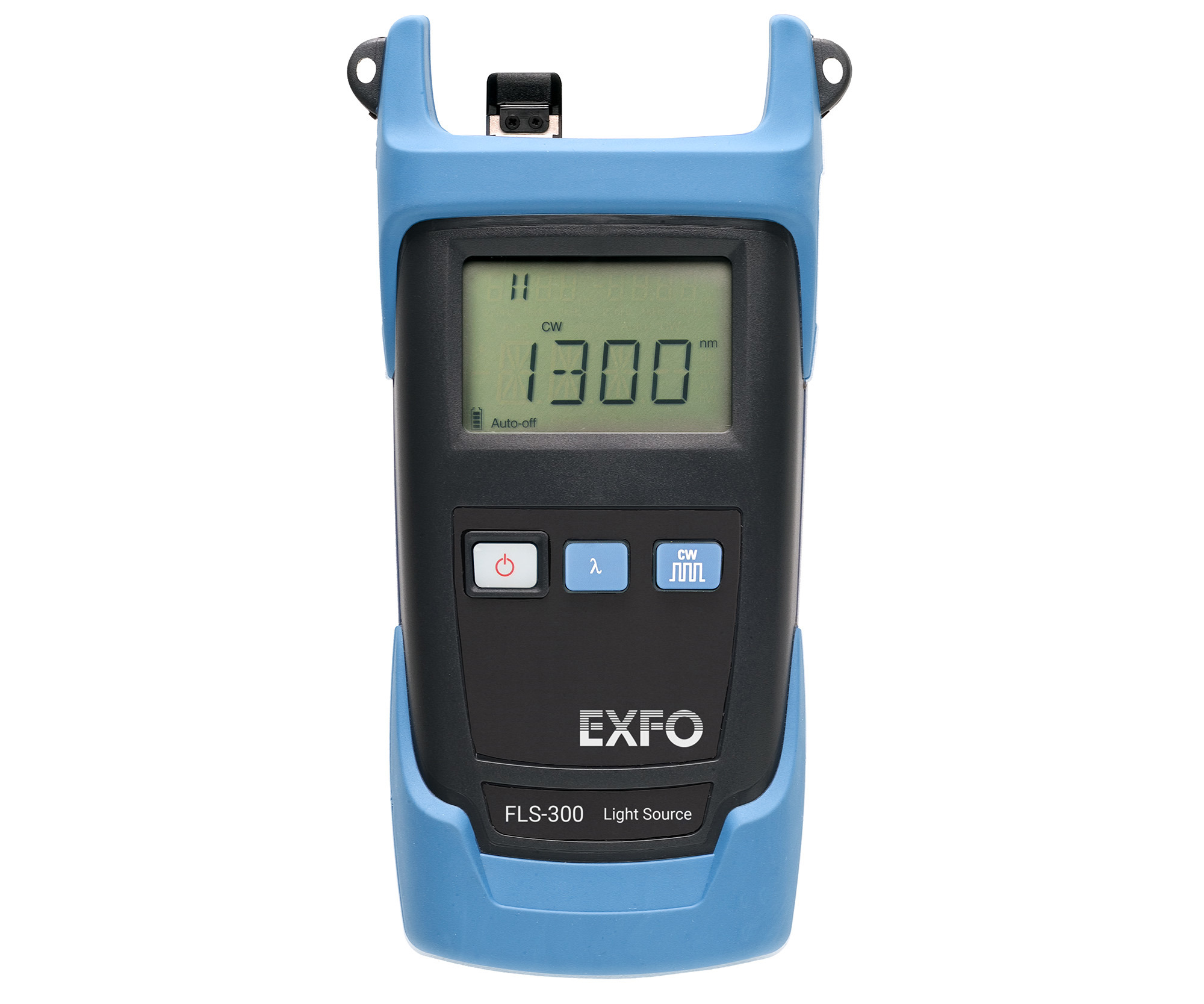

FLS-300 - 光源

功能多样、完整的光源:可在一个端口上提供最多3个单模波长,或在两个端口上提供最多4个波长(2个多模和2个单模)。

主要优点

可以使用波长识别数字加密协议进行传输,从而允许任何兼容设备自动使用适宜的校准参数
120小时的续航时间
可以六种语言进行设备识别
业界非常高的输出功率
三年质量保证和推荐的校准间隔,大幅降低拥有成本

应用

链路损耗鉴定
光纤识别

规格

技术规格
Auto-Wavelength Switching
Calibrated wavelengths 850/1300/1310/1550
Fiber Connector Type ST/SC/LC/E2000
Fiber Type Singlemode/Multimode
Product type Handheld
Test Type Fiber continuity/Link-loss characterization
Visual Fault Locator (VFL)
规格书

描述

With up to three singlemode wavelengths on a single port, or four wavelengths (two multimode, and two singlemode) on two ports, the FLS-300 is the most versatile, complete light source available.

An FTTx test solution

This product is part of EXFO's series of FTTx optical test products. It allows for the testing of passive optical networks (PONs) at the three main wavelengths (1310, 1490 and 1550 nm) used in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks and complies with the ITU-T G.983 and G.984 Recommendation series and the IEEE 802.3ah standard.

Auto-wavelength recognition

The FLS-300 Light Source can transmit with a wavelength-identification digital encrypted protocol, so that any compatible unit—the FPM-300 Power Meter and the FOT-300 Optical Loss Test Set—can automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.

Distant referencing

Signal encrypting can also give the receiving end information on the power to be used as reference, helping ensure efficient referencing, even when the two units are far apart.
