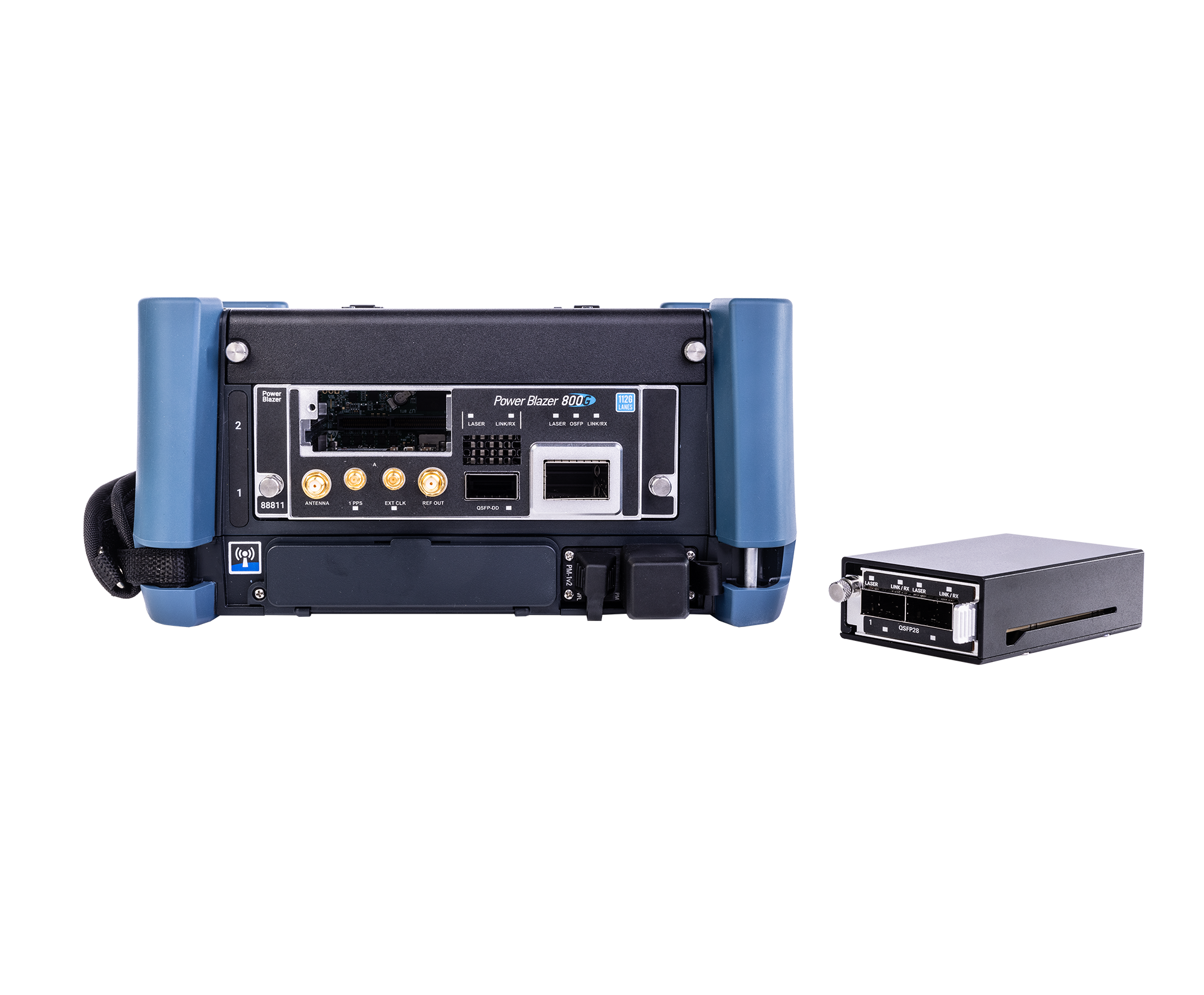

FTBx-88811 - complete lab-to-field testing, 1G-800G and 800ZR

Full-rate coverage from 1G to 800G—supporting Ethernet, OTN, Fibre Channel and coherent optics (including 800ZR). Built for the Coherent Future.

Características principales

Full-rate support from 1G to 800G

Support of the full coherent suit 800ZR, 400ZR 100ZR and OpenZR ( 400ZR+, 300ZR+, 200ZR+, 100ZR+)

Dual-port from 1G to 800G, including coherent dual 400ZR/ZR+

Multi-protocol coverage: Ethernet, OTN, Fibre Channel

Compact and portable—ideal for both lab and field environments

Built-in transceiver diagnostics: auto-negotiation, link training, breakout validation

Optimized thermal performance for coherent optics on the FTB-1v2 platform

Especificaciones

Technical specifications
Product type	Module
Supported data rates	1G / 10G / 25G / 40G / 100G / 400G / 800G
Supported Interfaces	SFP / SFP+ / SFP28 / QSFP28 / QSFP-DD / OSFP / OSFP800
Test Type	iOptics / OTN BERT / RFC 2544 / RFC6349 / EtherSAM (Y.1564) / EtherBERT / DCO BERT (Coherent) / Fibre channel / THrough Mode
