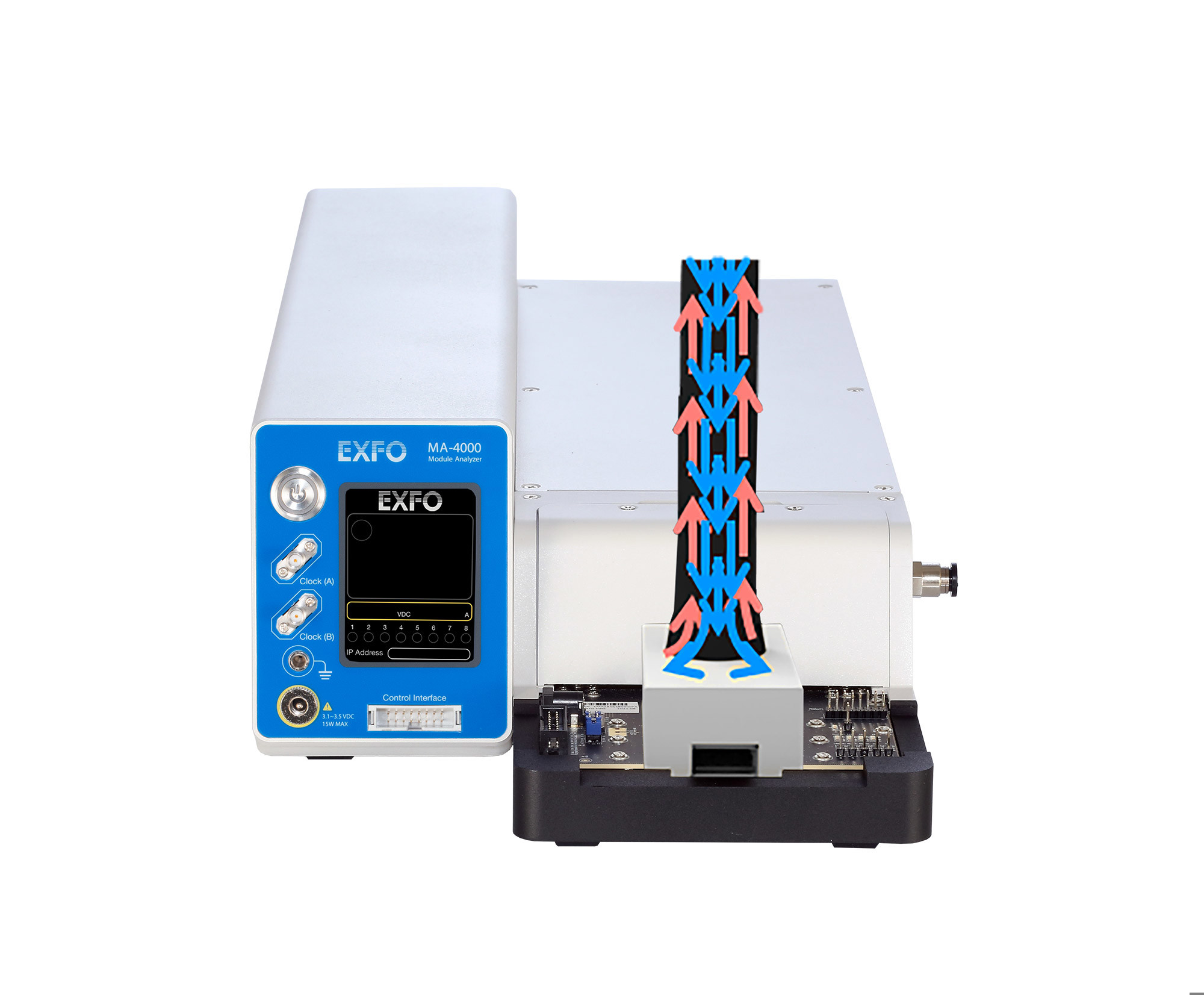

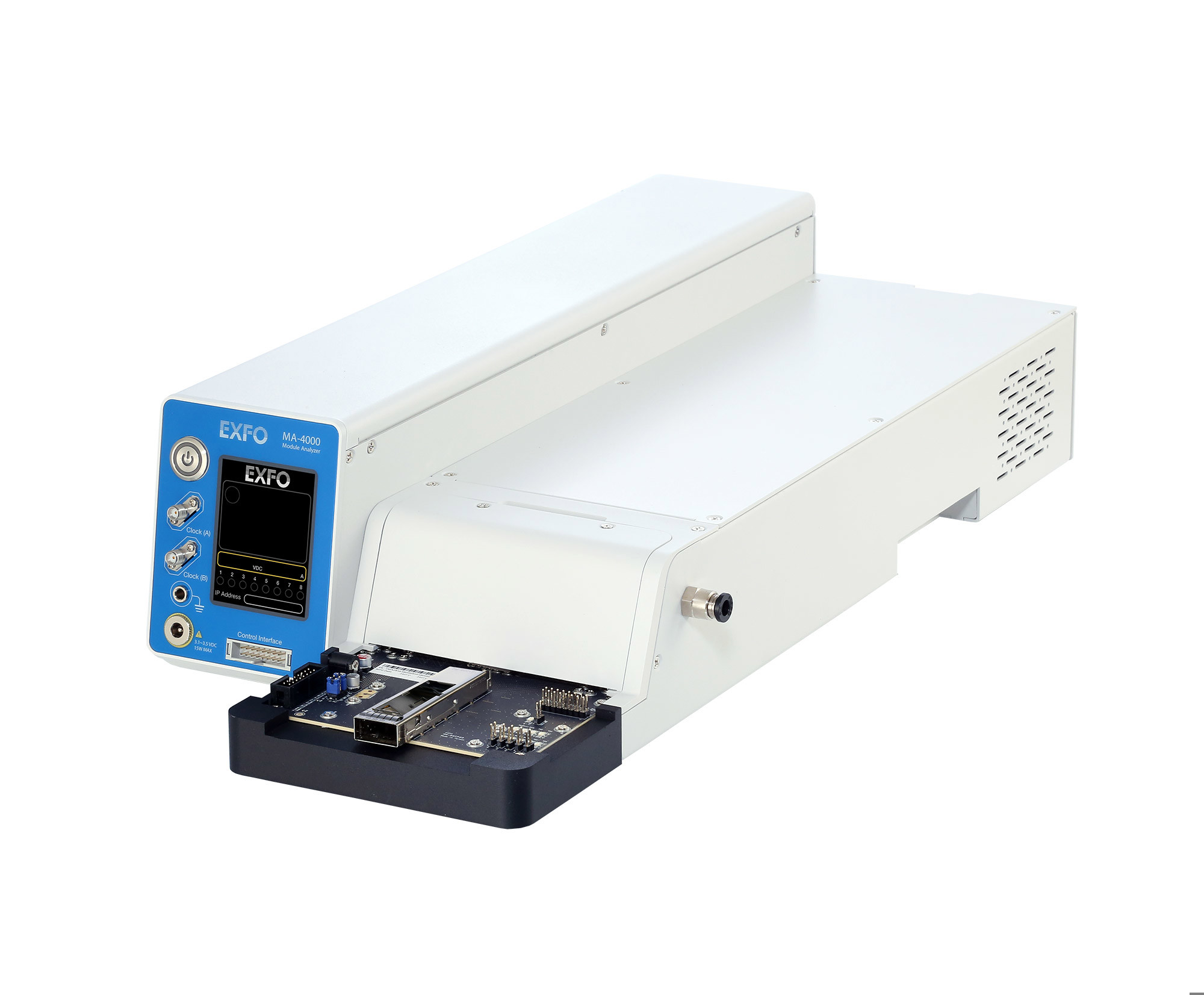

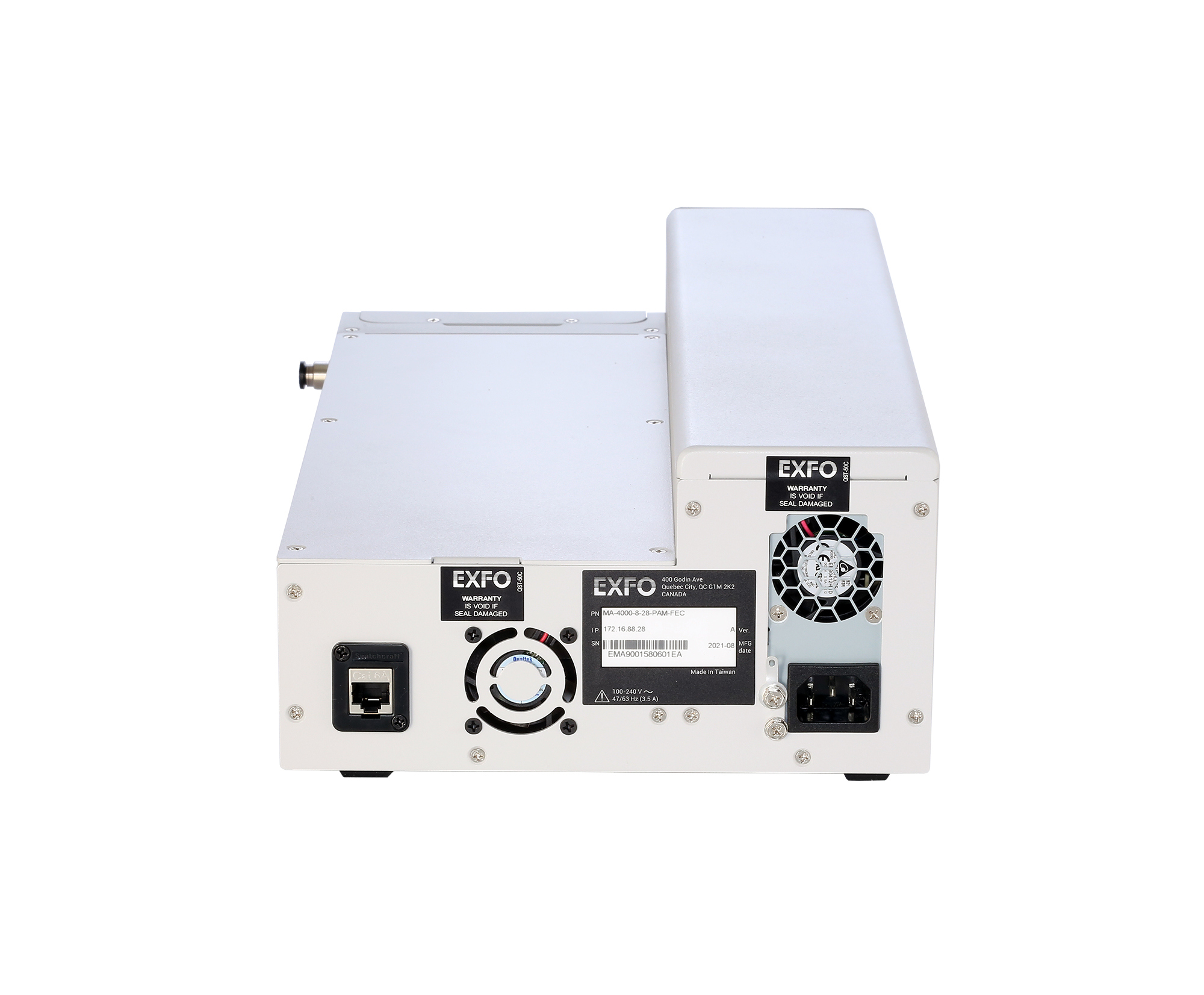

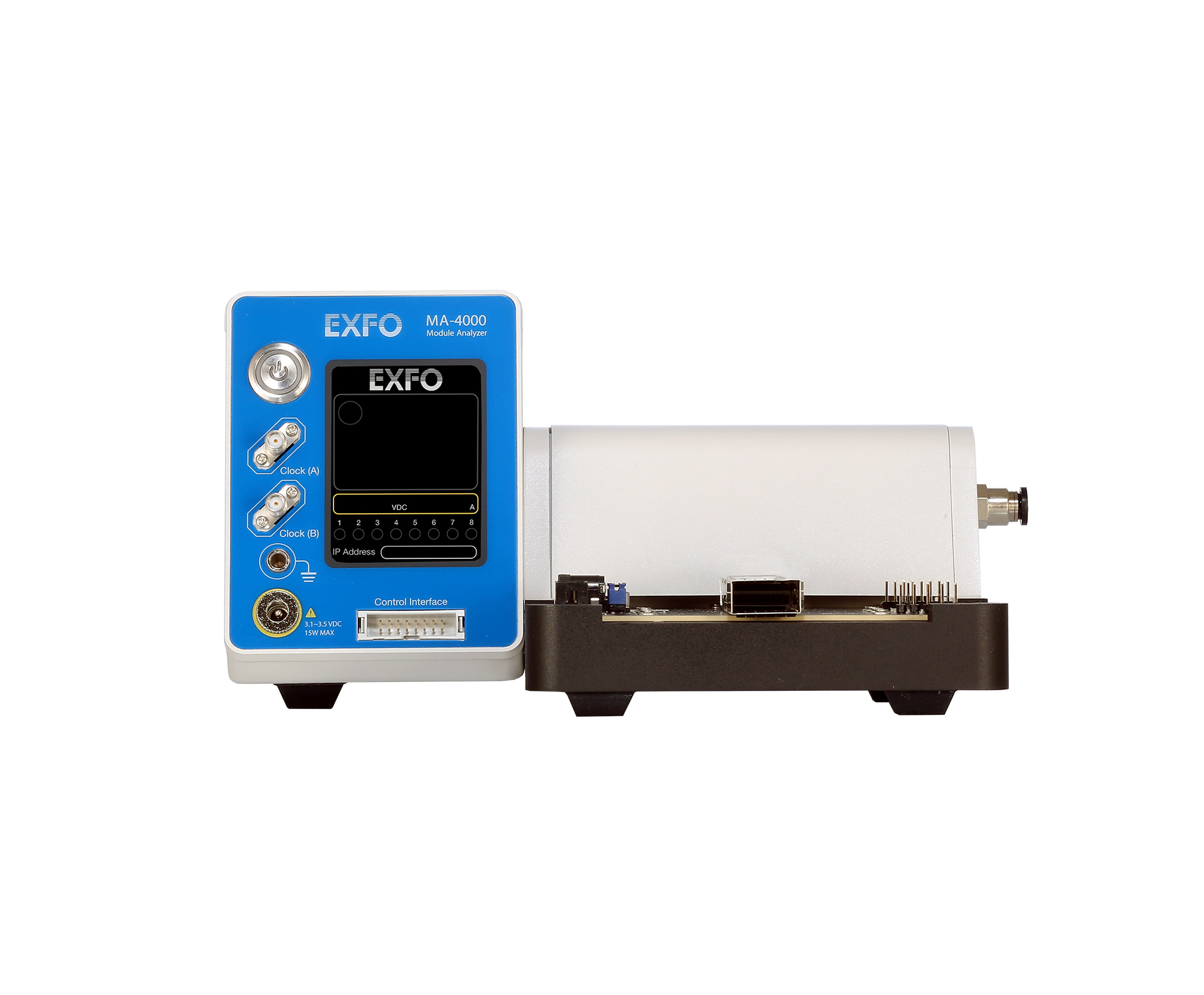

MA-4000 Module Analyzer - All-in-one BER tester - MCB for 100G/400G

Key features

8 channels, 10-28 GBd supporting PAM4 and NRZ
Integrated MCB (no RF cable required)
High flexibility supporting the most popular transceivers. Daughter cards available: QSFP-DD, OSFP, QSFP28, SFP28, SFP-DD
Future-proof design with replaceable MCB
I²C control function supported

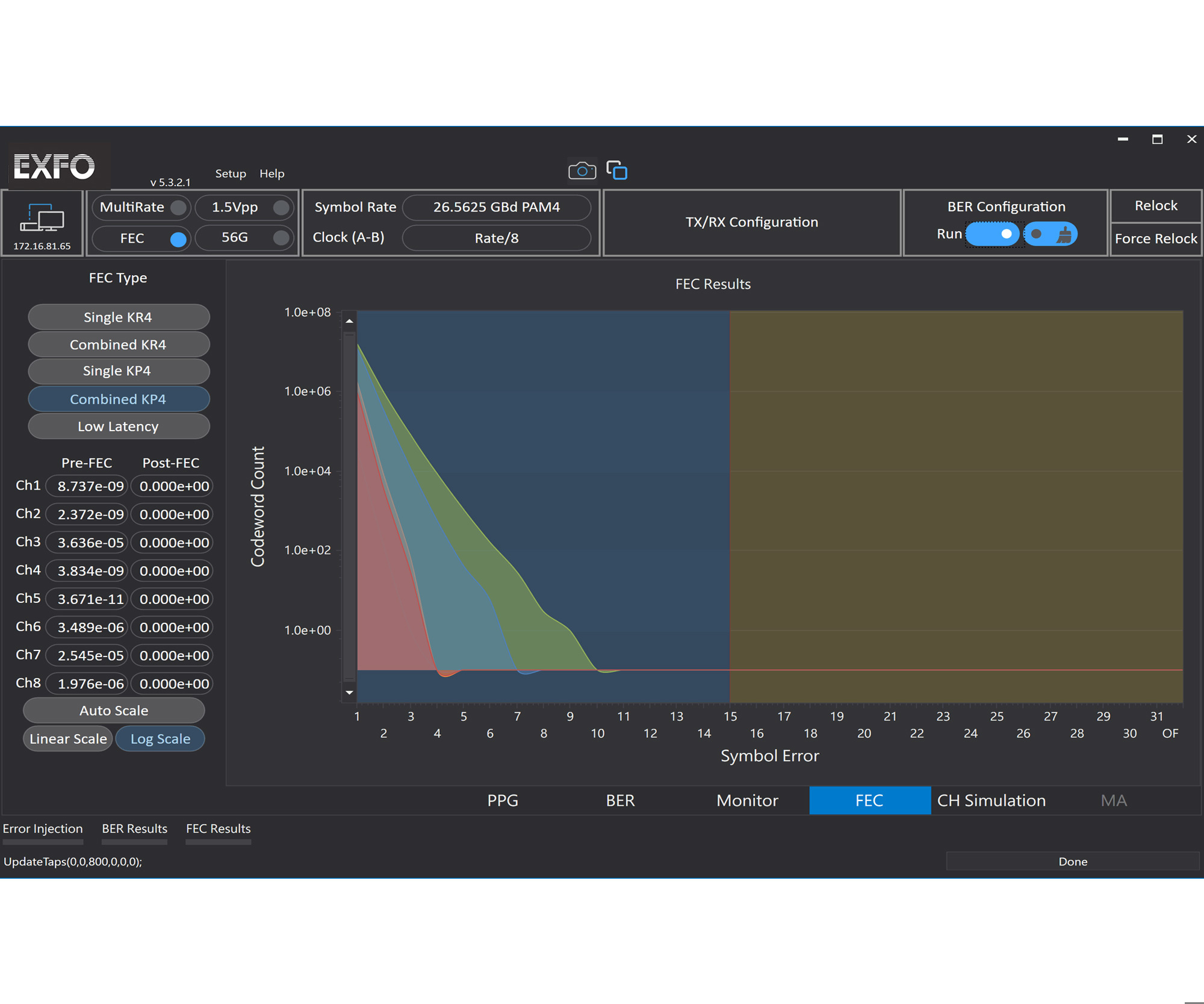

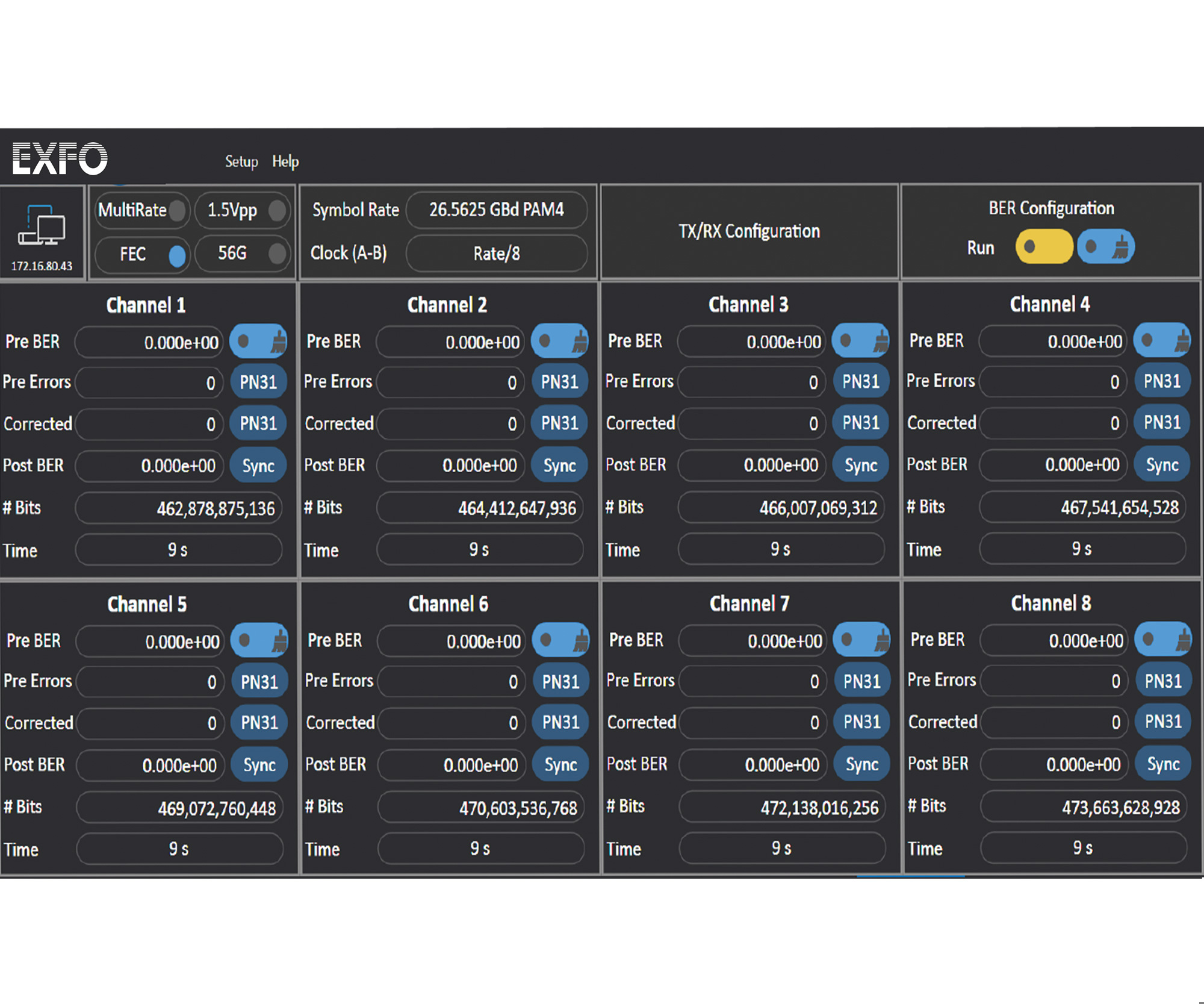

Pre- and post-FEC BER

Applications

Test and validation of transceivers
Test of FPGA, Module Compliance Board (MCB) and Host Compliance Board (HCB)

Description

The all-in-one solution for transceiver qualification on the production floor, including a bit-error-rate tester, module compliance board (MCB) and power supply.
